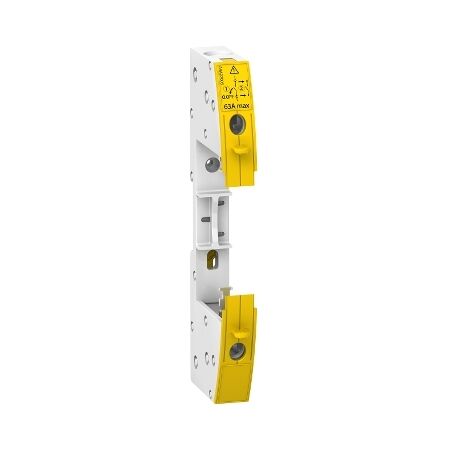

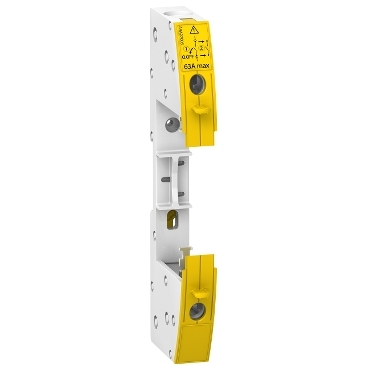

A9 Plug-In Base 1P for IC60 IID | 18mm Width | Quick Replacement | by Clipsal
The A9 Plug-In Base 1P is designed for Schneider Acti9 IC60 IID circuit breakers, featuring a compact 18mm width for easy installation. Ideal for residential and commercial switchboards, it enables quick and safe replacement of circuit breakers, ensuring efficient electrical distribution. Built from high-grade insulating plastic, this base complies with AS/NZS standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 Plug-In Base 1P for IC60 IID | 18mm Width | Quick Replacement | by Clipsal
Brand: Clipsal
SKU: SCHA9A27003
Alternatively Known As: Acti9 Plug-In Base, IC60 IID Base, Schneider Plug-In Base 1P, SCHA9A27003
Technical Specifications
- Type: Plug-in base for modular circuit breakers
- Poles: 1P (single pole)
- Width: 18mm
- Compatible Devices: Schneider Acti9 IC60 IID
- Mounting: DIN rail
- Material: High-grade insulating plastic
- Rated operational voltage: 230/400V AC
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Single pole plug-in base for IC60 IID circuit breakers
- 18mm width for compact installation
- Enables quick and safe replacement of circuit breakers
- Compatible with Schneider Acti9 modular devices
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical distribution boards
- Switchboards requiring modular circuit protection
- Upgrading or maintaining Schneider Acti9 IC60 IID installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947.3 – Low-voltage switchgear and controlgear
Environmental Benefits
- Facilitates modular upgrades, reducing waste from full unit replacements
- Supports safe and efficient maintenance, minimizing downtime and resource use
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 Plug-In Base 1P 18mm for IC60 IID (SCHA9A27003) is available for immediate purchase. Ideal for modular switchboard installations and upgrades in residential and commercial environments.
