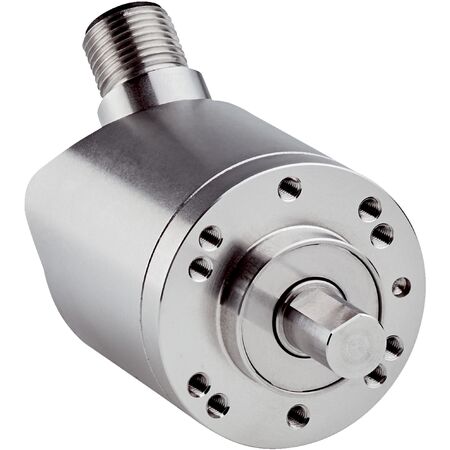

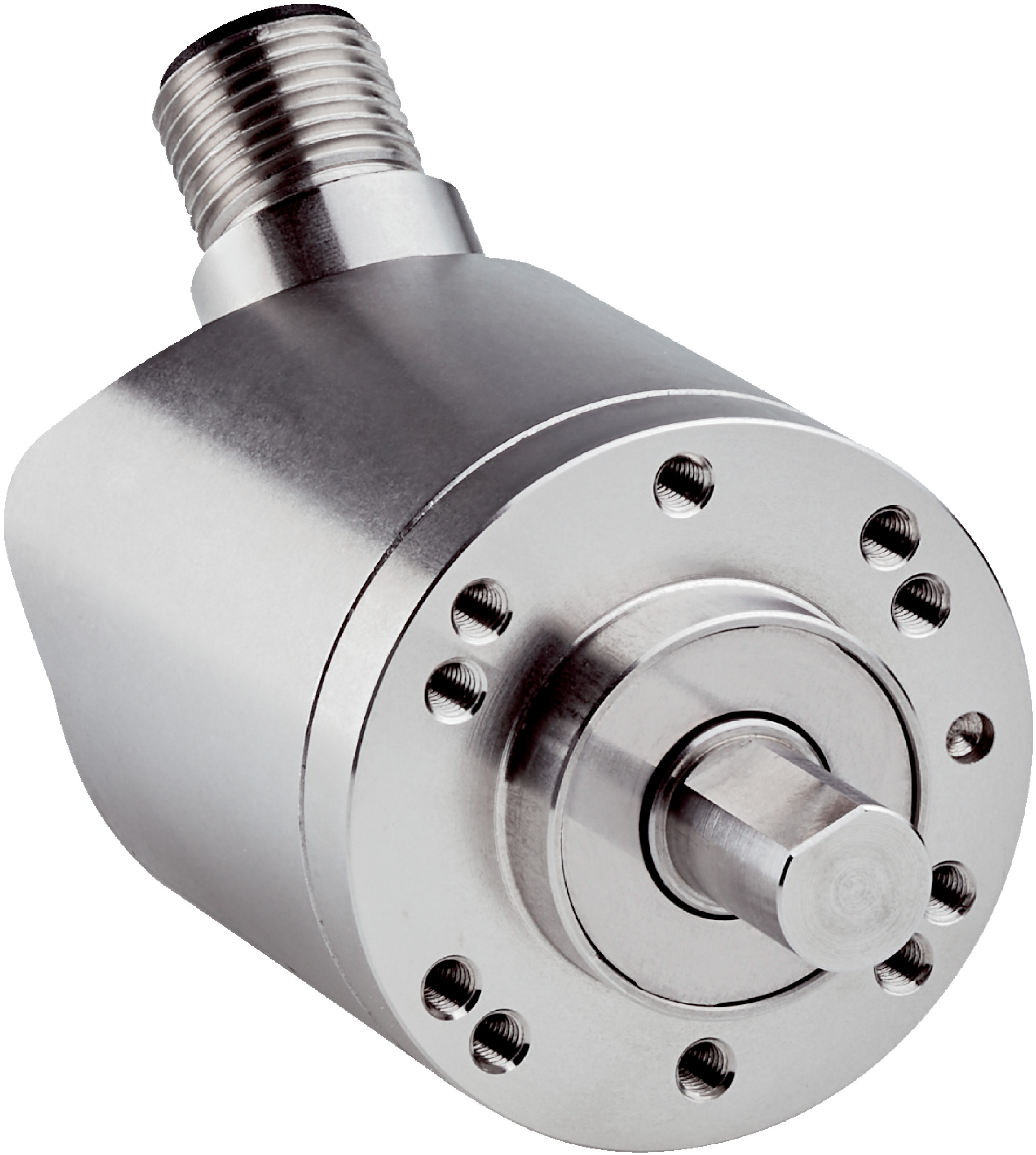

Absolute Encoder AHS36I-S7QC016384 | 16,384 Steps | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHS36I-S7QC016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel housing and shaft, it ensures durability and reliability in harsh environments. With an IO-Link V1.1 communication interface and an impressive operating temperature range of -40 °C to +85 °C, this encoder is perfect for demanding applications requiring precise position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36I-S7QC016384 | 16,384 Steps | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1110565
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, solid shaft encoder, industrial position sensor
Technical Specifications
- Number of steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection type: Male connector, M12, 4-pin
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8 inch
- Shaft length: 12 mm
- Shaft material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust stainless steel housing and shaft for durability
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- Supports electronic cams, limit values, and switching signals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in automation systems
- Robust design minimizes downtime and resource use for maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S7QC016384 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
