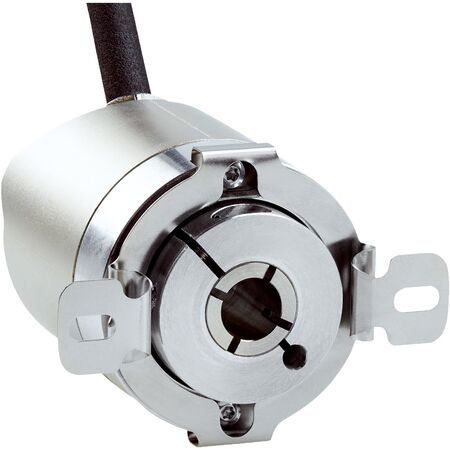

Absolute Encoder AHS36A-BAPK016384 | 16,384 Steps/Rev | IP66 & IP67 Rated | Fast Initialization | by SICK
The Absolute Encoder AHS36A-BAPK016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With a robust blind hollow shaft design and IP66/IP67 enclosure rating, it ensures reliable performance in harsh environments. Fast initialization and position forming times enhance its efficiency, making it a perfect choice for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHS36A-BAPK016384 | 16,384 Steps/Rev | IP66 & IP67 Rated | Fast Initialization | by SICK
Brand: SICK
SKU: 1066015
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Industrial encoder
Technical Specifications
- Number of steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft with 6 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP66 and IP67
- Weight: 0.12 kg
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Fast initialization time of 100 ms and position forming time of 125 µs
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Supports SSI communication interface with configurable code type (Gray, binary)
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Wide operating temperature range from –40 °C to +100 °C
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cTUVus
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the SSI interface and mechanical mounting.
Applications
- Industrial automation for precise position measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36A-BAPK016384 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
