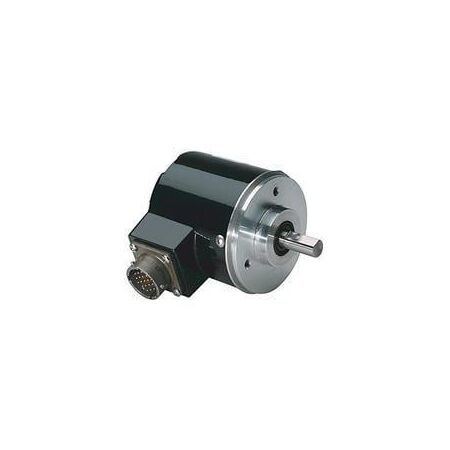

Absolute Encoder 25mm | NEMA 4 Rated | 256 PPR | Gray Code Output | by Allen-Bradley
The Absolute Encoder 25mm from Allen-Bradley delivers precise position feedback with 256 pulses per revolution, making it ideal for industrial automation and robotics. Its NEMA 4 rated enclosure ensures protection against dust and water, while the square flange design and 10 mm shaft provide easy installation. Perfect for manufacturing equipment requiring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Absolute encoder
- Size: 25 mm
- Enclosure rating: NEMA 4
- Flange: Square flange
- Shaft diameter: 10 mm
- Output type: NPN open collector, 24 V DC max
- Code type: Gray code
- Pulses per revolution (PPR): 256
- Connector: Radial connector (side) with mate
- Power supply: 8-24 V DC unregulated
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with 256 pulses per revolution (PPR)
- NEMA 4 rated enclosure for protection against dust and water
- Square flange design with 10 mm shaft
- Gray code output with NPN open collector 24 V DC max
- Radial connector (side) with mate included
- Operates on 8-24 V DC unregulated power supply
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Manufacturing equipment with NEMA 4 protection requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable NEMA 4 enclosure reduces environmental damage and extends product life
- Low power consumption with 8-24 V DC operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845DSJDB25AGCW5 Absolute Encoder is available for immediate purchase, ideal for industrial automation and control applications.
