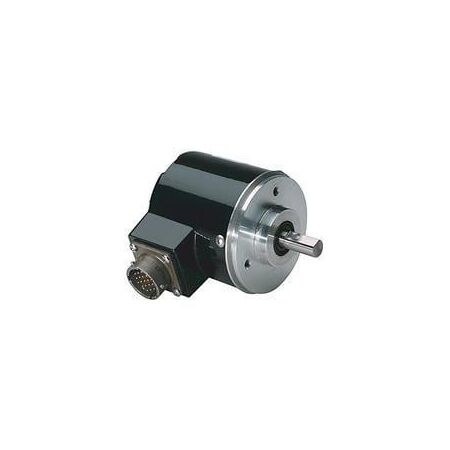

Absolute Encoder 25mm | NEMA 4 Rated | 256 PPR | Gray Code Output | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 845DSJDB25AGCW5
$3,649.50 List price: $4,547.80
+ −
30 Days Return Delivery Options
Absolute Encoder 25mm | NEMA 4 Rated | 256 PPR | Gray Code Output | by Allen-Bradley

Product Name/Title: Allen-Bradley 845DSJDB25AGCW5 Absolute Encoder 25mm

Brand: Allen-Bradley

SKU: 845DSJDB25AGCW5

Alternatively Known As: Absolute rotary encoder, 25mm shaft encoder, NEMA 4 encoder, Gray code encoder

Technical Specifications
  • Type: Absolute encoder
  • Size: 25 mm
  • Enclosure rating: NEMA 4
  • Flange: Square flange
  • Shaft diameter: 10 mm
  • Output type: NPN open collector, 24 V DC max
  • Code type: Gray code
  • Pulses per revolution (PPR): 256
  • Connector: Radial connector (side) with mate
  • Power supply: 8-24 V DC unregulated
  • Dimensions (H x L x W): 60mm x 80mm x 60mm
  • Weight: 0.3 kg
Key Features
  • Absolute encoder with 256 pulses per revolution (PPR)
  • NEMA 4 rated enclosure for protection against dust and water
  • Square flange design with 10 mm shaft
  • Gray code output with NPN open collector 24 V DC max
  • Radial connector (side) with mate included
  • Operates on 8-24 V DC unregulated power supply
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
  • Industrial automation and control systems
  • Robotics and machinery requiring precise position feedback
  • Manufacturing equipment with NEMA 4 protection requirements
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable NEMA 4 enclosure reduces environmental damage and extends product life
  • Low power consumption with 8-24 V DC operation
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 845DSJDB25AGCW5 Absolute Encoder is available for immediate purchase, ideal for industrial automation and control applications.
