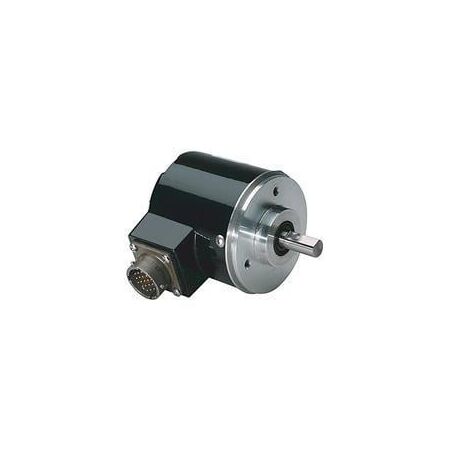

Absolute Encoder 25mm | NEMA 4 Rated | 1024 PPR Gray Code | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 845DSJEB25AGFW2
$4,078.30 List price: $5,082.10
+ −
30 Days Return Delivery Options
The Absolute Encoder 25mm from Allen-Bradley delivers precise position feedback, making it ideal for industrial automation and motion control systems. With a NEMA 4 rated enclosure for dust and water protection, it features a gray code output with 1024 pulses per revolution, ensuring reliable performance in demanding environments.
Technical Specifications
  • Type: Absolute encoder
  • Size: 25 mm
  • Flange Diameter: 70 mm
  • Shaft Diameter: 10 mm
  • Output Type: NPN open collector
  • Voltage: 8-24 V DC unregulated
  • Code: Gray code
  • Pulses Per Revolution (PPR): 1024
  • Connector: Radial connector (side)
  • Latch: No latch
  • Dimensions (H x L x W): 70mm x 50mm x 70mm
  • Weight: 0.3 kg
Key Features
  • Absolute encoder providing precise position feedback
  • NEMA 4 rated enclosure for protection against dust and water
  • 70 mm diameter flange with 10 mm shaft
  • Gray code output with 1024 pulses per revolution (PPR)
  • NPN open collector output compatible with 8-24 V DC unregulated power supply
  • Radial connector located on the side for easy wiring
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical standards.
Applications
  • Industrial automation and control systems
  • Robotics and machinery position feedback
  • Manufacturing process monitoring
  • Motion control systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable NEMA 4 enclosure reduces need for frequent replacements, minimizing waste
  • Low power consumption with 8-24 V DC unregulated supply
Warranty Information

Includes Radwell 2-year warranty; factory warranty does not apply.

Available Now

The Allen-Bradley 845DSJEB25AGFW2 Absolute Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
