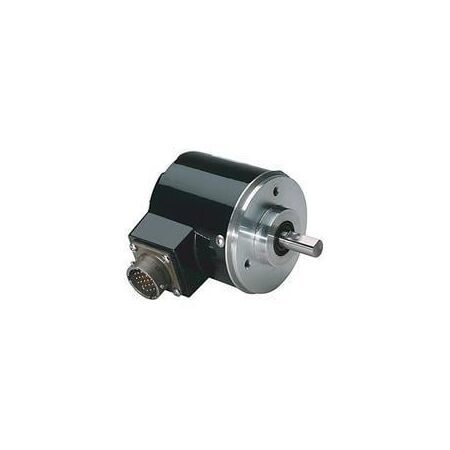

Absolute Encoder 25mm | NEMA 4 Rated | 360 PPR | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 845DSJEC14ADCK4
$2,831.40 List price: $3,528.40
+ −
30 Days Return Delivery Options
The Absolute Encoder 25mm from Allen-Bradley features a robust NEMA 4 rating, ensuring protection against dust and water. With a binary coded decimal output and 360 pulses per revolution, it's perfect for industrial automation and robotics applications. Designed for precise position feedback, this encoder is ideal for manufacturing equipment and process control, making it a reliable choice for professionals.
Technical Specifications
  • Type: Absolute encoder
  • Size: 25 mm
  • Flange Diameter: 70 mm
  • Shaft Diameter: 1/4 inch
  • Output: Binary coded decimal
  • Pulses per Revolution (PPR): 360
  • Power Supply: 5 V DC ±5%
  • Interface: DLD 5V DC RS-422
  • Connector: Axial connector (end) with mate
  • Latch: No latch
  • Dimensions (H x L x W): 70mm x 50mm x 70mm
  • Weight: 0.3 kg
Key Features
  • Absolute encoder with binary coded decimal output
  • NEMA 4 rated for protection against water and dust
  • 70 mm diameter flange with 1/4 inch shaft
  • Axial connector (end) with mate included
  • 360 pulses per revolution (PPR)
  • 5 V DC ±5% power supply with DLD 5V DC RS-422 interface
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
  • Industrial automation and control systems
  • Robotics and machinery requiring precise position feedback
  • Manufacturing equipment and process control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable NEMA 4 rating reduces need for frequent replacements, minimizing waste
  • Low voltage operation (5 V DC) reduces energy consumption
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 845DSJEC14ADCK4 Absolute Encoder is available for immediate purchase, ideal for industrial automation and control applications.
