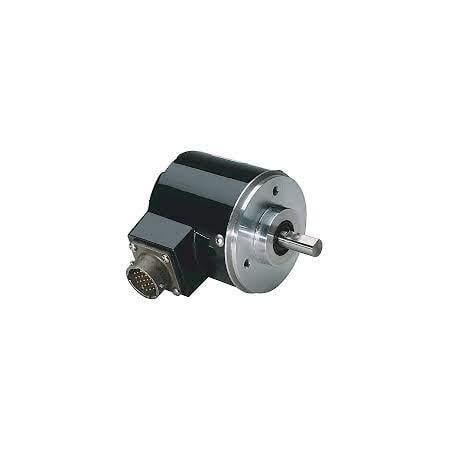

Product Name/Title: Allen-Bradley 845GF3BAHP1024R Absolute Encoder 25mm Square Flange
Brand: Allen-Bradley
SKU: 845GF3BAHP1024R
Alternatively Known As: Absolute rotary encoder, 10-bit absolute encoder, 25mm flange encoder, Allen Bradley encoder
Technical Specifications
- Encoder type: Absolute
- Output format: Natural binary
- Resolution: 10-bit (0-1023)
- Voltage supply: 10-30 VDC
- Connector type: Radial 19-pin
- Mounting: Square flange
- Signal type: High true, push-pull
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with natural binary output
- Square flange mounting
- Radial 19-pin connector
- Operating voltage: 10-30 VDC
- High true output signal
- 10-bit resolution (0-1023)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with encoder wiring and industrial control systems.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves machine efficiency by providing precise position feedback, reducing energy waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3BAHP1024R Absolute Encoder is available for immediate purchase, ideal for industrial automation and machinery position feedback applications.
