Absolute Encoder 25mm Square Flange | 1000 PPR | NEMA 4 Rated | by Allen-Bradley
Absolute Encoder 25mm Square Flange | 1000 PPR | NEMA 4 Rated | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

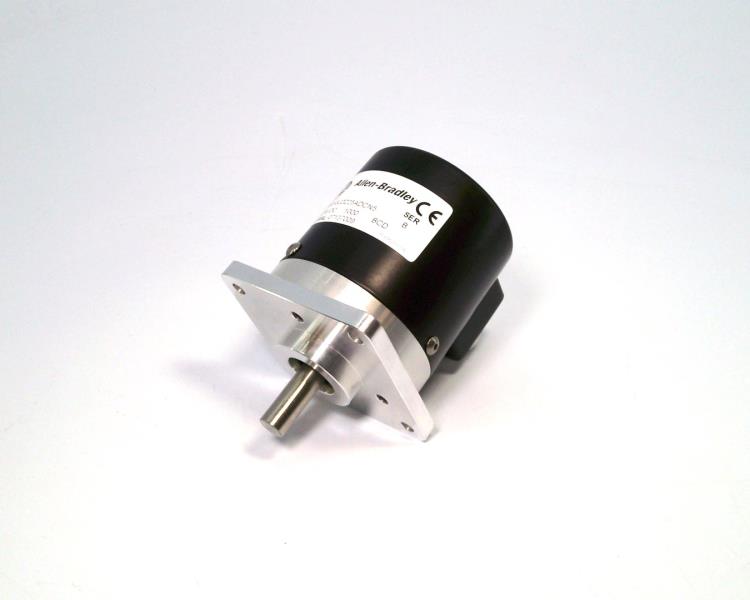

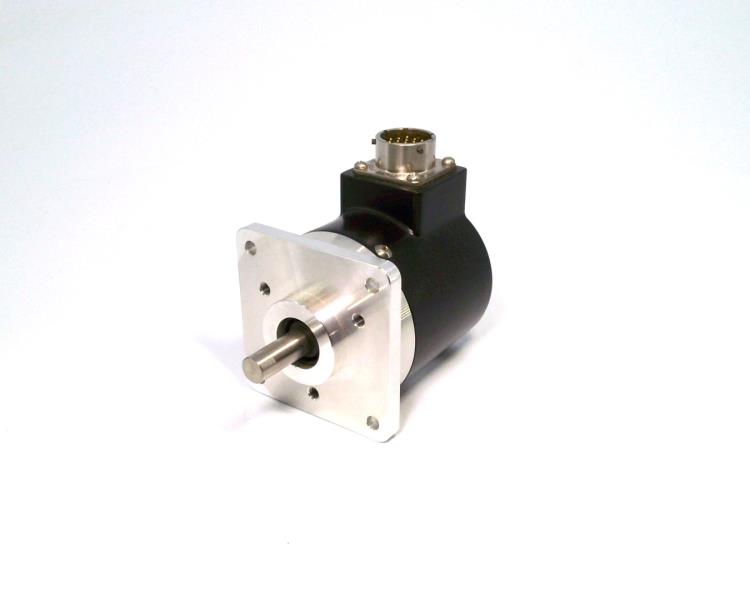

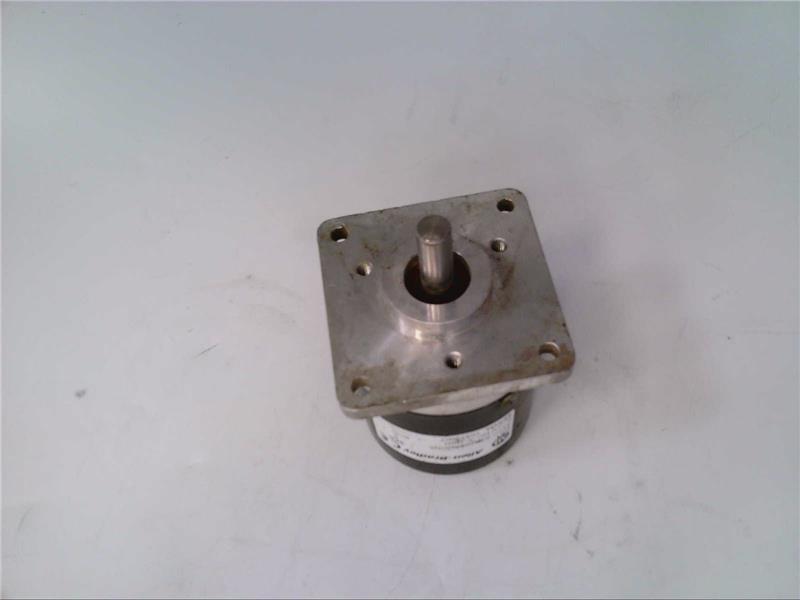

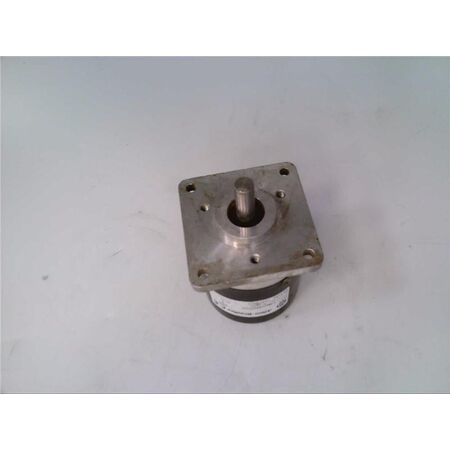

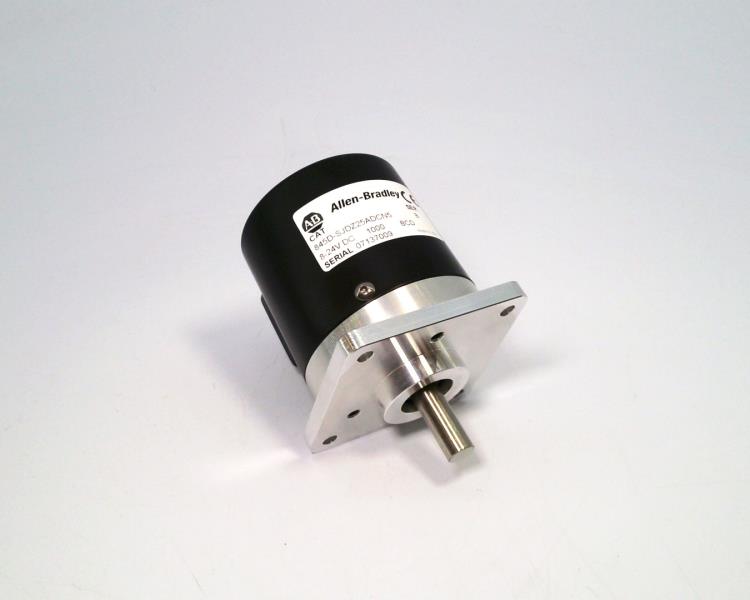

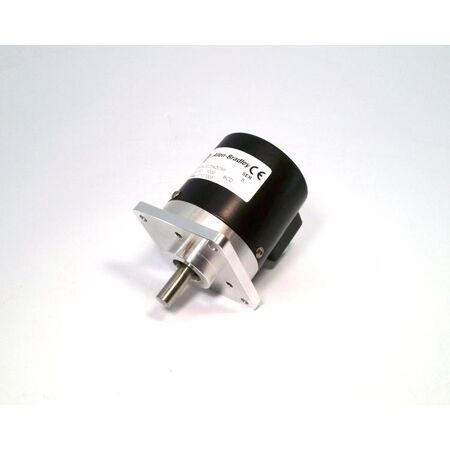

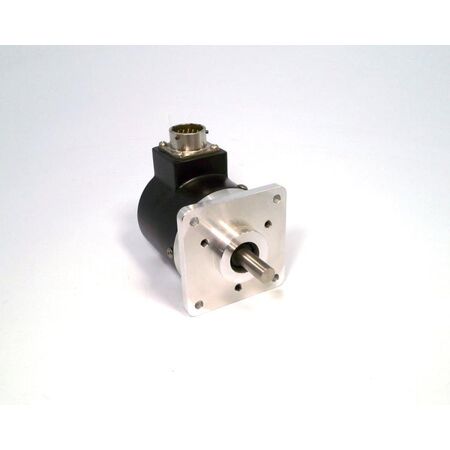

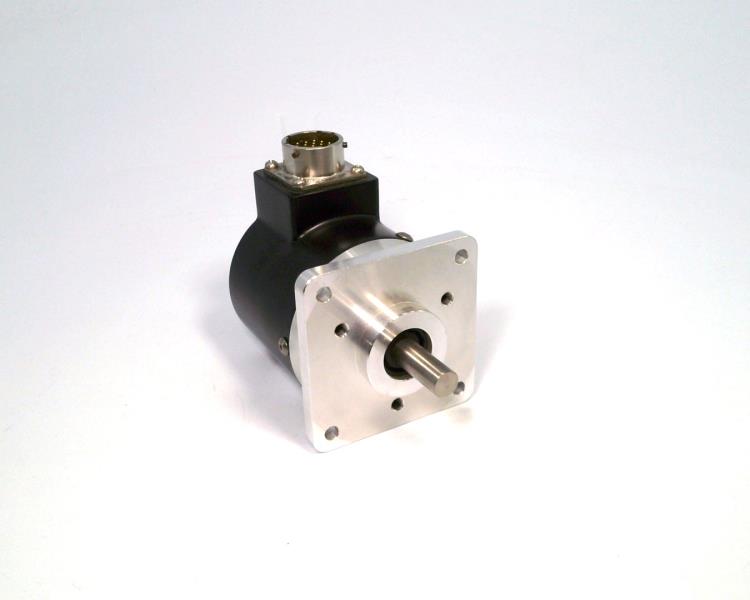

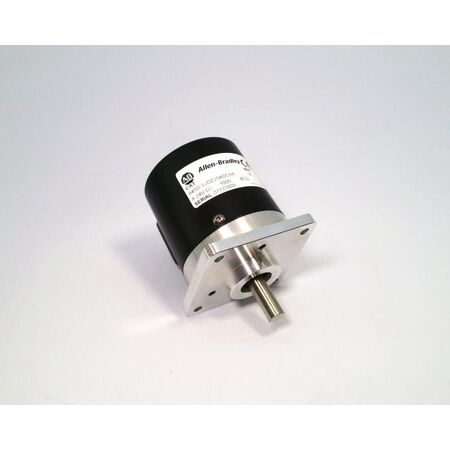

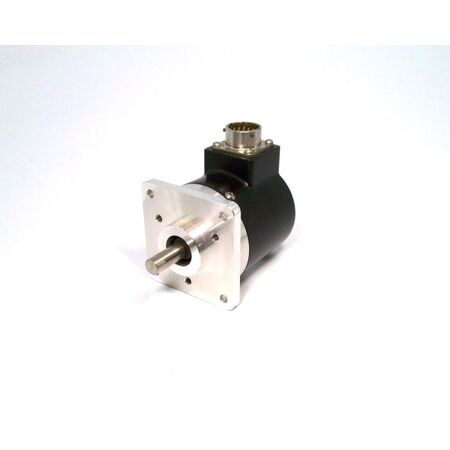

Product Name/Title: Allen-Bradley 845DSJDZ25ADCN5 Absolute Encoder 25mm Square Flange
Brand: Allen-Bradley
SKU: 845DSJDZ25ADCN5
Alternatively Known As: Absolute rotary encoder, 25mm encoder, NEMA 4 encoder, binary coded decimal encoder
Technical Specifications
- Type: Absolute encoder
- Size: 25mm square flange
- Shaft diameter: 3/8 inch
- Output: NPN open collector, 24 V DC max
- Code: Binary coded decimal
- Pulses per revolution: 1000 PPR
- Connector: Radial connector (side) with mate
- Power supply: 8-24 V DC unregulated
- Enclosure rating: NEMA 4
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with 1000 pulses per revolution (PPR)
- NEMA 4 rated enclosure for protection against dust and water
- Square flange mounting with 3/8 inch shaft
- Binary coded decimal output
- NPN open collector output, 24 V DC max
- Radial connector (side) with mate included
- Operates on 8-24 V DC unregulated power supply
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable NEMA 4 enclosure reduces need for frequent replacements, minimizing waste
- Low power consumption with 8-24 V DC operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845DSJDZ25ADCN5 Absolute Encoder is available for immediate purchase, ideal for industrial automation and control applications.
