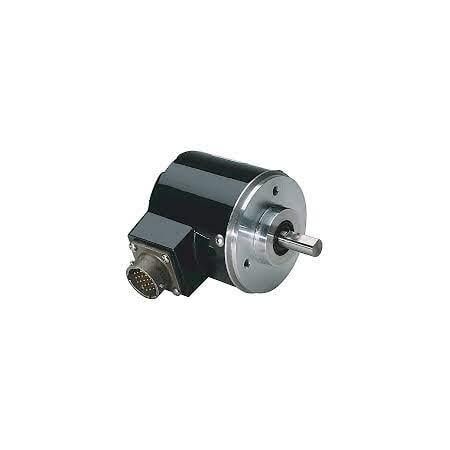

Product Name/Title: Allen-Bradley 845GF3G5HT0256A Absolute Encoder 25mm Square Flange
Brand: Allen-Bradley
SKU: 845GF3G5HT0256A
Alternatively Known As: Absolute Encoder 25mm, Gray Code Encoder, 8-bit Encoder, Allen-Bradley Encoder
Technical Specifications
- Model: 845GF3G5HT0256A
- Type: Absolute encoder
- Output: 8-bit Gray code (0-255)
- Power Supply: 5VDC +/-5%
- Signal Type: 5VDC TTL NPN, High True
- Mounting: 25mm square flange
- Connector: Axial 19-pin
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder with 8-bit gray code output
- Square flange mounting for secure installation
- High true signal output
- 5VDC +/-5% power supply
- Axial 19-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder wiring and industrial control systems.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Provides precise position feedback reducing machine errors and waste
- Supports efficient automation leading to energy savings
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley 845GF3G5HT0256A Absolute Encoder is available for immediate purchase, ideal for industrial automation and control applications.
