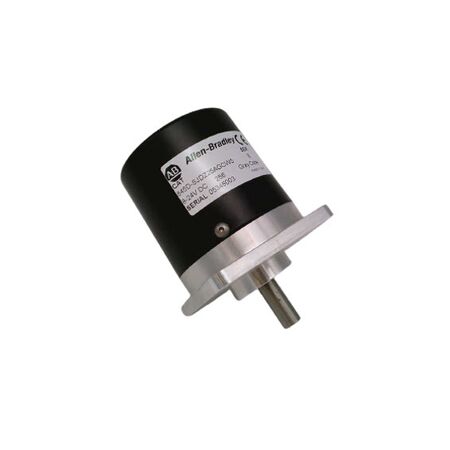

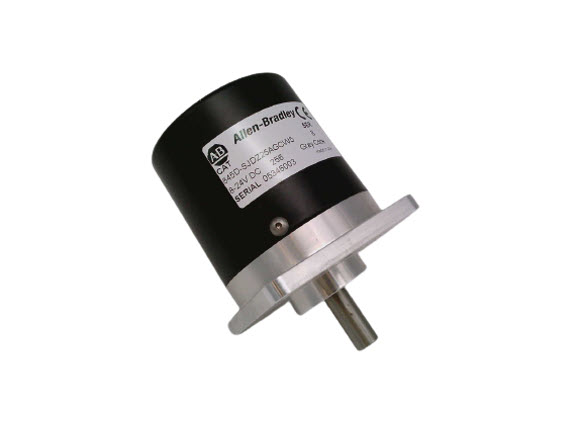

Product Name/Title: Allen-Bradley Absolute Encoder 25mm Square Flange
Brand: Allen-Bradley
SKU: 845DSJDZ25AGCW5
Alternatively Known As: Absolute rotary encoder, 25mm encoder, NEMA 4 encoder, Gray code encoder
Technical Specifications
- Encoder Type: Absolute
- Size: 25mm square flange
- Shaft Diameter: 3/8 inch
- Output Type: NPN open collector
- Voltage: 8-24 V DC unregulated
- Pulses Per Revolution (PPR): 256
- Code Type: Gray code
- Connector: Radial connector (side) with mate
- Enclosure Rating: NEMA 4
- Latch: No latch
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.3 kg
Key Features
- Absolute encoder providing precise position feedback
- NEMA 4 rated enclosure for protection against dust and water
- Square flange mounting for secure installation
- 3/8 inch shaft diameter
- Gray code output with 256 pulses per revolution (PPR)
- Radial connector (side) with mate included
- Operates on 8-24 V DC unregulated power supply
- NPN open collector output, 24 V DC max
- No latch feature
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to electrical standards.
Applications
- Industrial automation and control systems
- Robotics and machinery position feedback
- Manufacturing equipment requiring precise shaft position measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable NEMA 4 enclosure reduces need for frequent replacements, minimizing waste
- Low power consumption with 8-24 V DC operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley Absolute Encoder 25mm Square Flange is available for immediate purchase, ideal for industrial automation and machinery position feedback applications.
