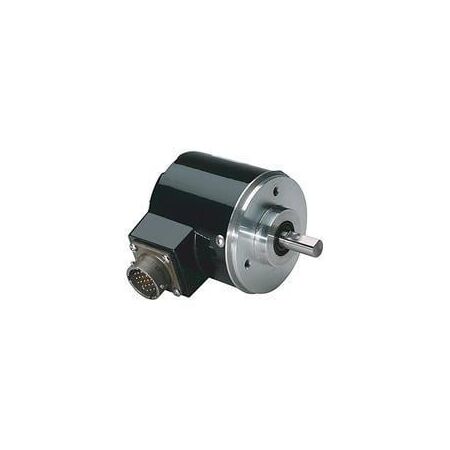

Product Name/Title: Allen-Bradley 845DSJDZ25AGCW4 Absolute Encoder 25mm Square Flange
Brand: Allen-Bradley
SKU: 845DSJDZ25AGCW4
Alternatively Known As: Absolute rotary encoder, 25mm encoder, NEMA 4 encoder, Gray code encoder
Technical Specifications
- Type: Absolute encoder
- Size: 25mm square flange
- Shaft diameter: 3/8 inch
- Output type: NPN open collector
- Voltage: 8-24 V DC unregulated
- Pulses per revolution: 256 PPR
- Code: Gray code
- Connector: Axial connector with mate
- Protection rating: NEMA 4
- Dimensions (H x L x W): 25mm x 60mm x 25mm
- Weight: 0.2 kg
Key Features
- Absolute encoder providing precise position feedback
- NEMA 4 rated for protection against dust and water
- Square flange design with 3/8 inch shaft
- Gray code output with 256 pulses per revolution (PPR)
- Axial connector with mating plug included
- Operates on 8-24 V DC unregulated power supply
- NPN open collector output, 24 V DC max
- No latch feature
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Manufacturing equipment with rotary position sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable NEMA 4 rating reduces need for frequent replacements, minimizing waste
- Low power consumption with 8-24 V DC operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845DSJDZ25AGCW4 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
