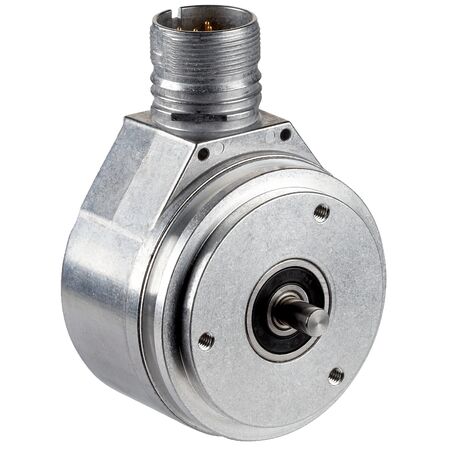

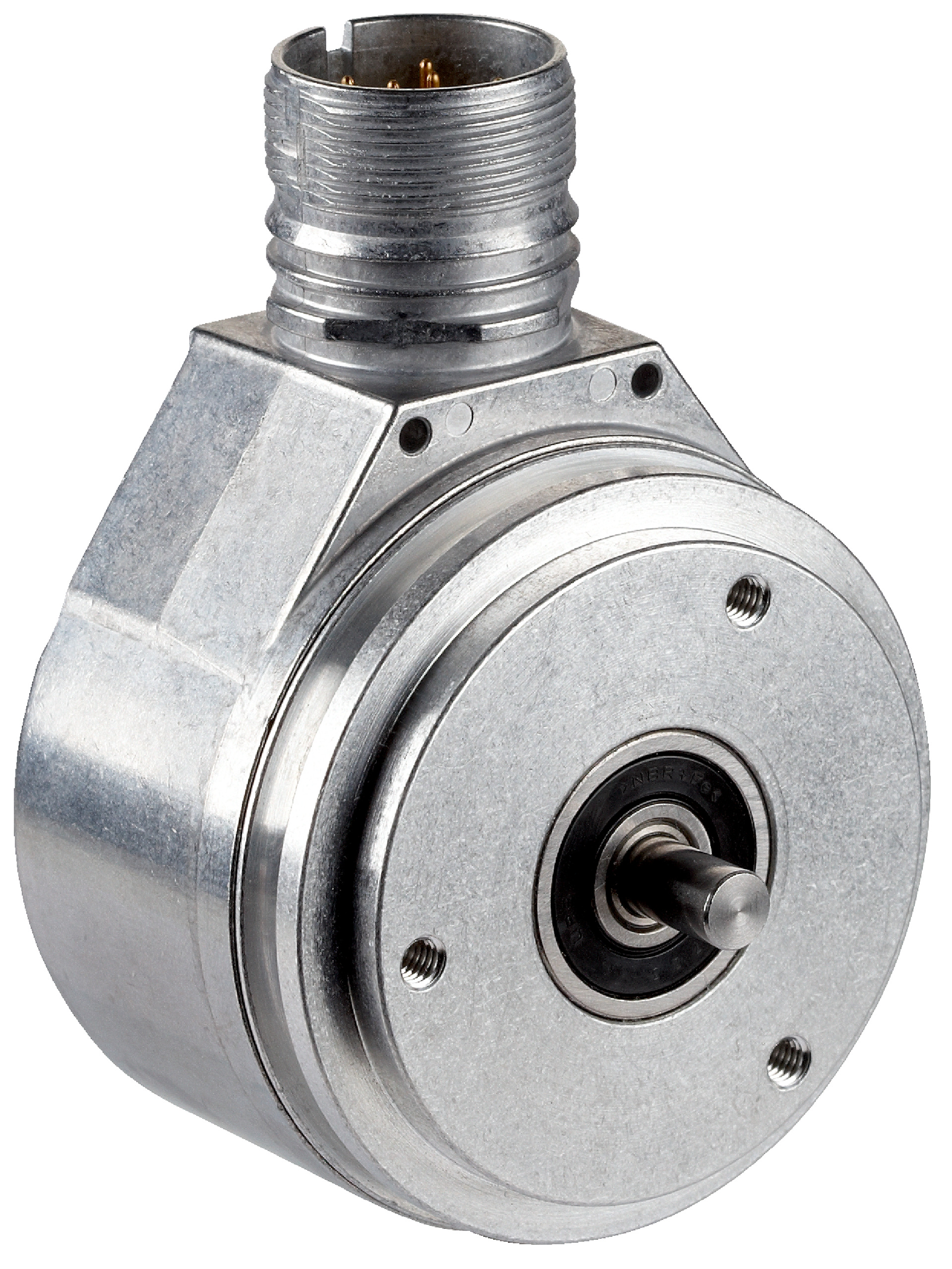

Absolute Encoder AFM60A-S1KA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60A-S1KA262144 offers high precision with a maximum resolution of 262,144 steps per revolution, making it ideal for industrial automation and robotics. With robust mechanical design and IP65/IP67 ratings for dust and water protection, this encoder ensures reliable performance in demanding environments. Perfect for servo motor feedback systems and machine tool positioning, it delivers exceptional repeatability and long bearing lifetime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60A-S1KA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1102275
Alternatively Known As: Rotary Absolute Encoder, SSI Absolute Encoder, High Resolution Encoder, Industrial Position Encoder
Technical Specifications
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm, length: 10 mm, with flat
- Housing material: Aluminum die cast
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust mechanical design with solid shaft and servo flange
- Stainless steel shaft with flat for secure mounting
- IP65 rated shaft side and IP67 rated housing side for dust and water protection
- Low start-up torque (<0.5 Ncm) and operating torque (<0.3 Ncm)
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection included
- Communication via SSI interface with Sin/Cos signals
- High repeatability with standard deviation of 0.002°
- Long bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary feedback
- Servo motor feedback systems
- Machine tool positioning
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S1KA262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
