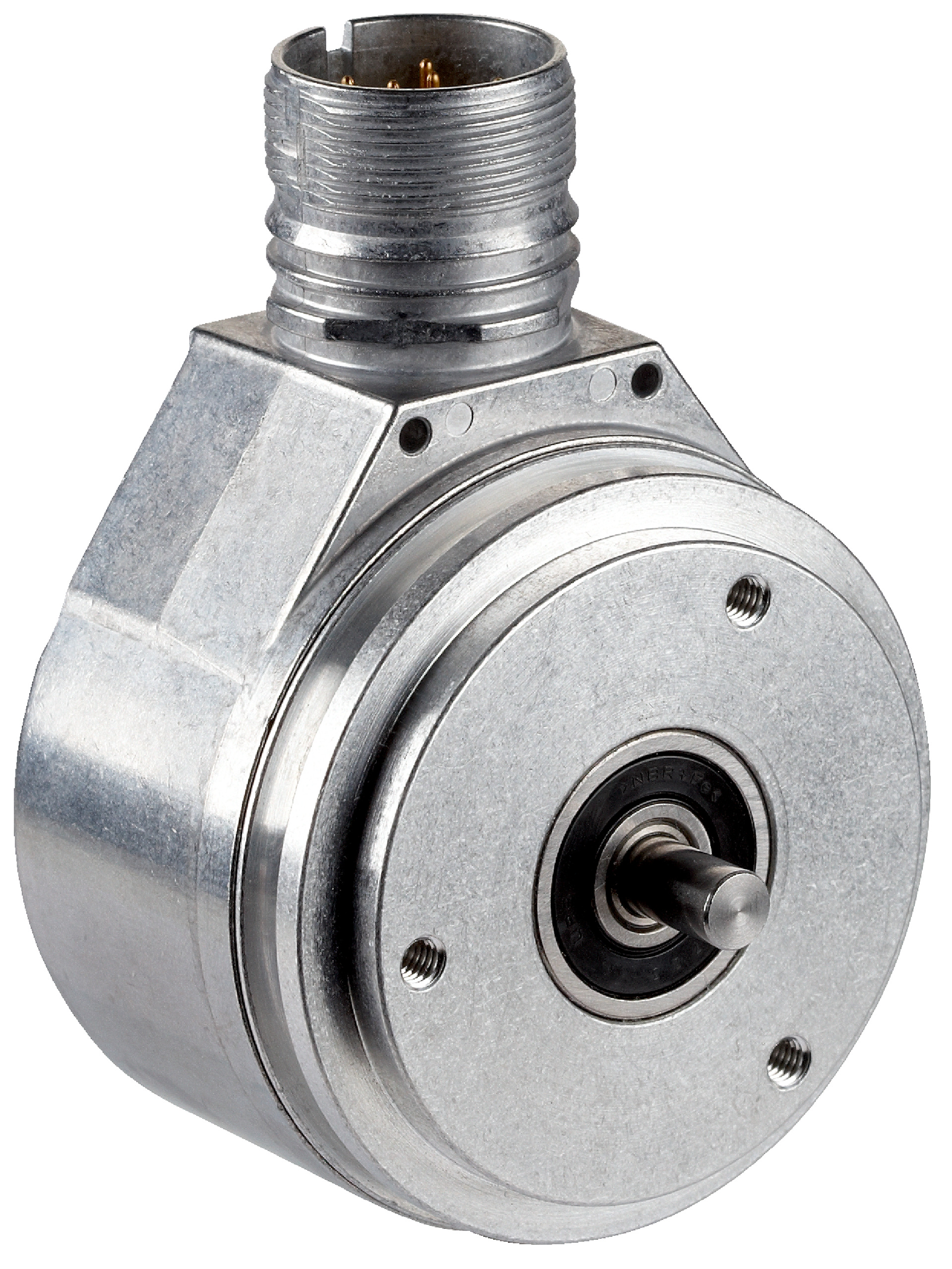

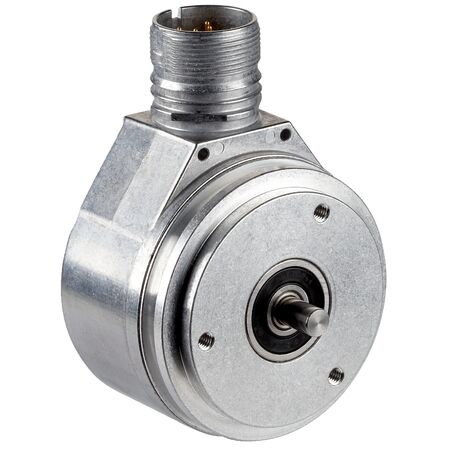

Absolute Encoder AFM60A-S1TA065536 | 65,536 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60A-S1TA065536 offers high resolution with 65,536 steps per revolution and robust mechanical design, making it ideal for industrial automation and precision positioning applications. With an IP65/IP67 rating and low power consumption, this encoder ensures reliable performance in demanding environments, perfect for robotics and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60A-S1TA065536 | 65,536 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1082788
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Incremental encoder with SSI, High resolution encoder
Technical Specifications
- Max resolution: 65,536 steps per revolution (16 bit) x 4,096 revolutions (12 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental TTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm, length: 10 mm, with flat
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.5 Ncm at 20°C
- Operating torque: < 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and servo flange
- Stainless steel shaft with flat for secure mounting
- IP65 shaft side and IP67 housing side protection
- Low start-up and operating torque for efficient operation
- Reverse polarity protection and low power consumption
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI and incremental TTL interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK AFM60A-S1TA065536 absolute encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
