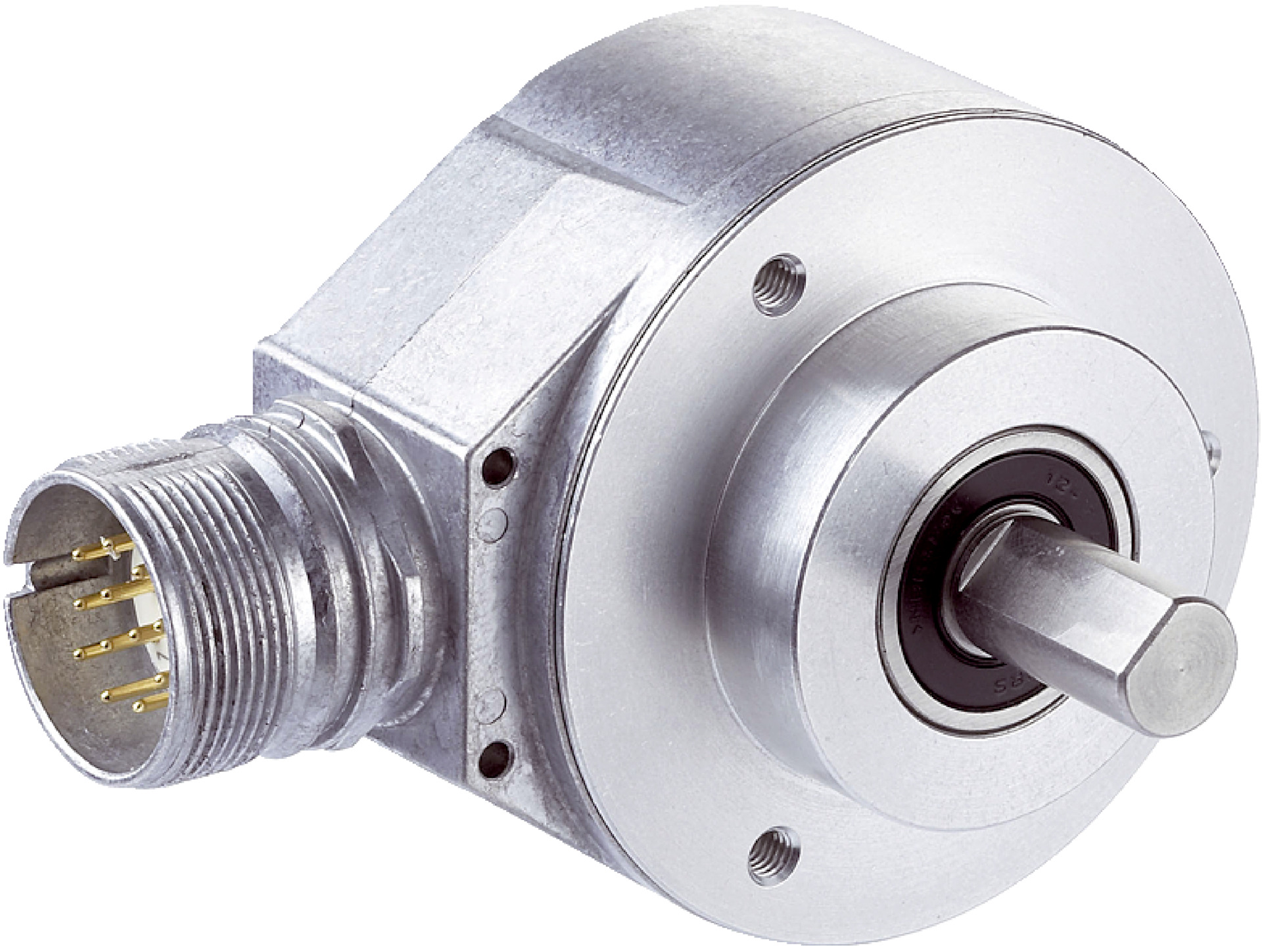

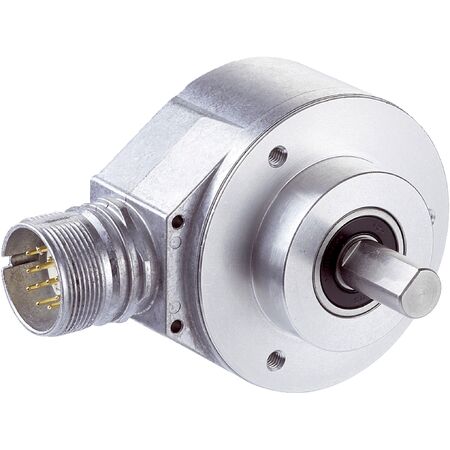

Absolute Encoder AFM60A-S4AA004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60A-S4AA004096 delivers high precision with a maximum resolution of 4,096 steps per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features a solid shaft with a 10 mm diameter and robust aluminum housing, ensuring reliable performance in demanding environments. With an operating temperature range of -40 °C to +100 °C, this encoder is perfect for machine tools and conveyor systems requiring accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60A-S4AA004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037780
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Shaft encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 4,096 steps/rev x 4,096 revolutions (12 bit x 12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Connection type: Male M23, 12-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: < 0.5 Ncm
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC: EN 61000-6-2 and EN 61000-6-3 compliant
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing and flange for durability
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code
- High mechanical endurance with bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Resistance to shocks (60 g, 6 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high resolution and reliability
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60A-S4AA004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precision machinery applications.
