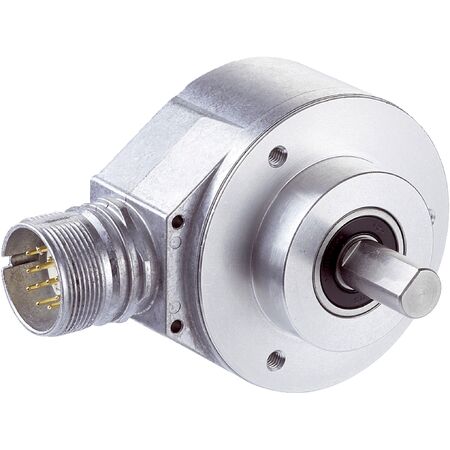

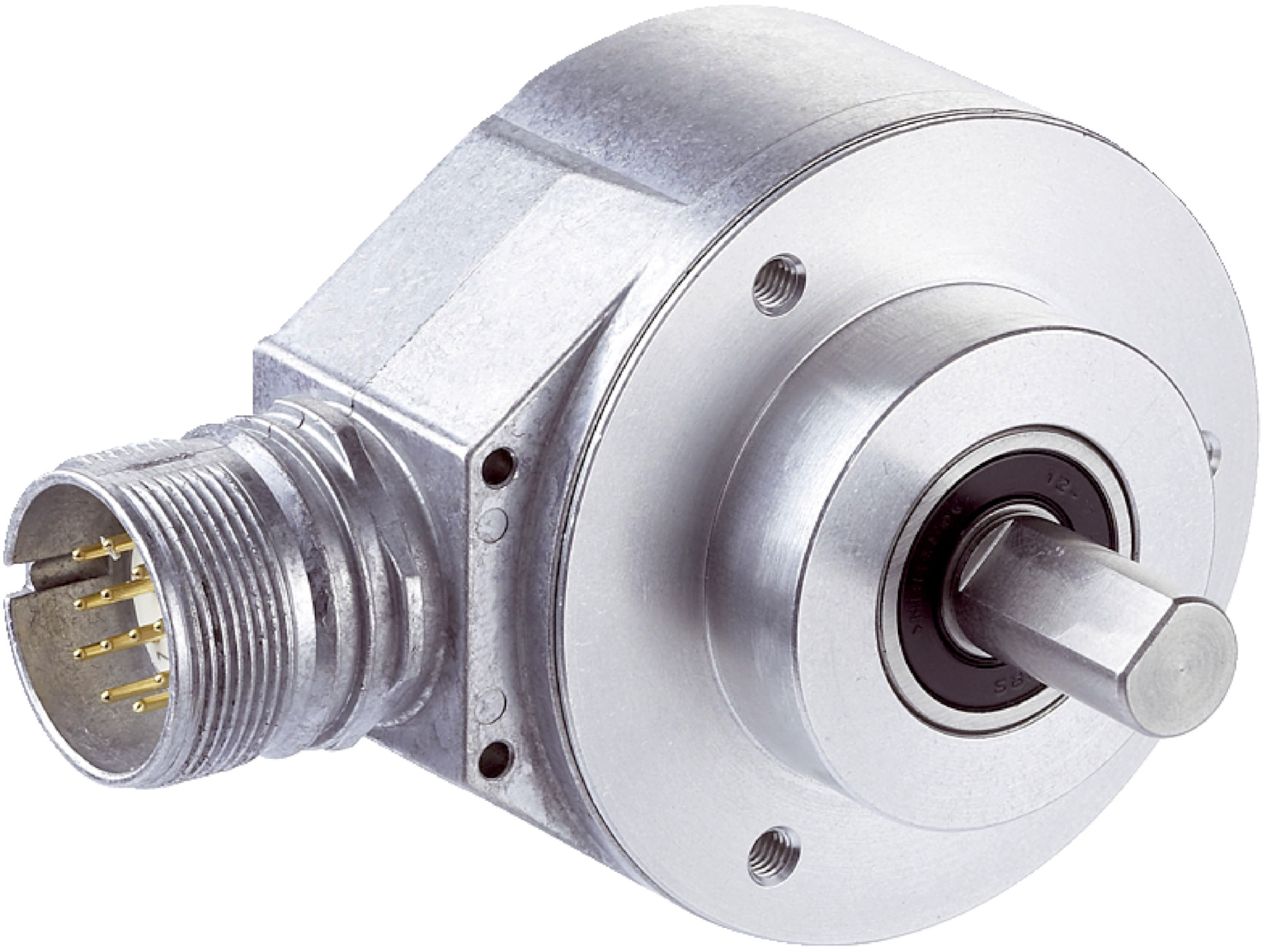

Absolute Encoder AFM60A-S4LA262144 | 262,144 Steps/Rev | IP65/IP67 Protection | by SICK
The Absolute Encoder AFM60A-S4LA262144 offers high precision with 262,144 steps per revolution and robust IP65/IP67 protection, making it ideal for industrial automation and robotics. Designed for reliable performance, it features a stainless steel shaft and fast initialization time, ensuring efficient operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60A-S4LA262144 | 262,144 Steps/Rev | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1116688
Alternatively Known As: Rotary encoder, Absolute rotary encoder, High resolution encoder, SSI encoder, Industrial position encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Weight: 0.3 kg
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low start-up and operating torque for efficient operation
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI and incremental/HTL interfaces
- High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60A-S4LA262144 absolute encoder is available for immediate purchase, ideal for high-precision industrial automation and safety applications.
