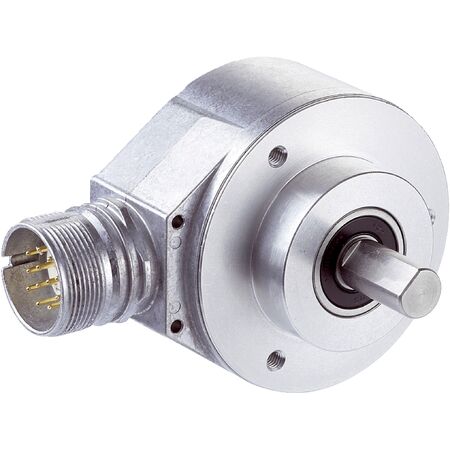

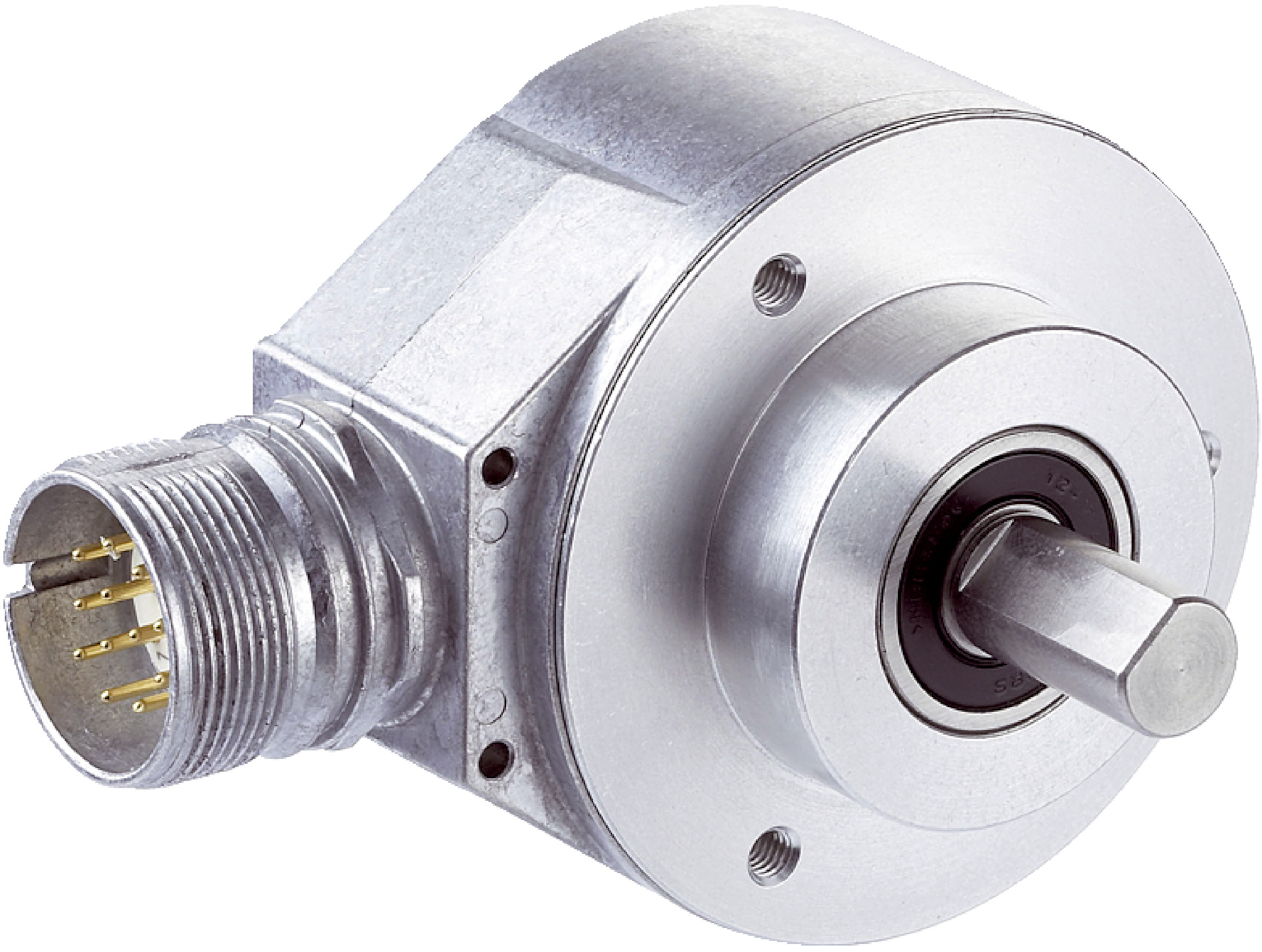

Absolute Encoder AFM60A-S4RA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60A-S4RA262144 offers high precision with 262,144 steps per revolution and robust IP65/IP67 protection, making it ideal for industrial automation and robotics. Designed for reliability, it features a stainless steel shaft and low power consumption, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60A-S4RA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1052624
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + incremental, Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: < 0.5 Ncm at +20 °C
- Operating torque: < 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- Wide operating temperature range from -40 °C to +100 °C
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI and incremental interface with Gray code
- High reliability with mean time to dangerous failure (MTTFD) of 250 years
- Resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S4RA262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
