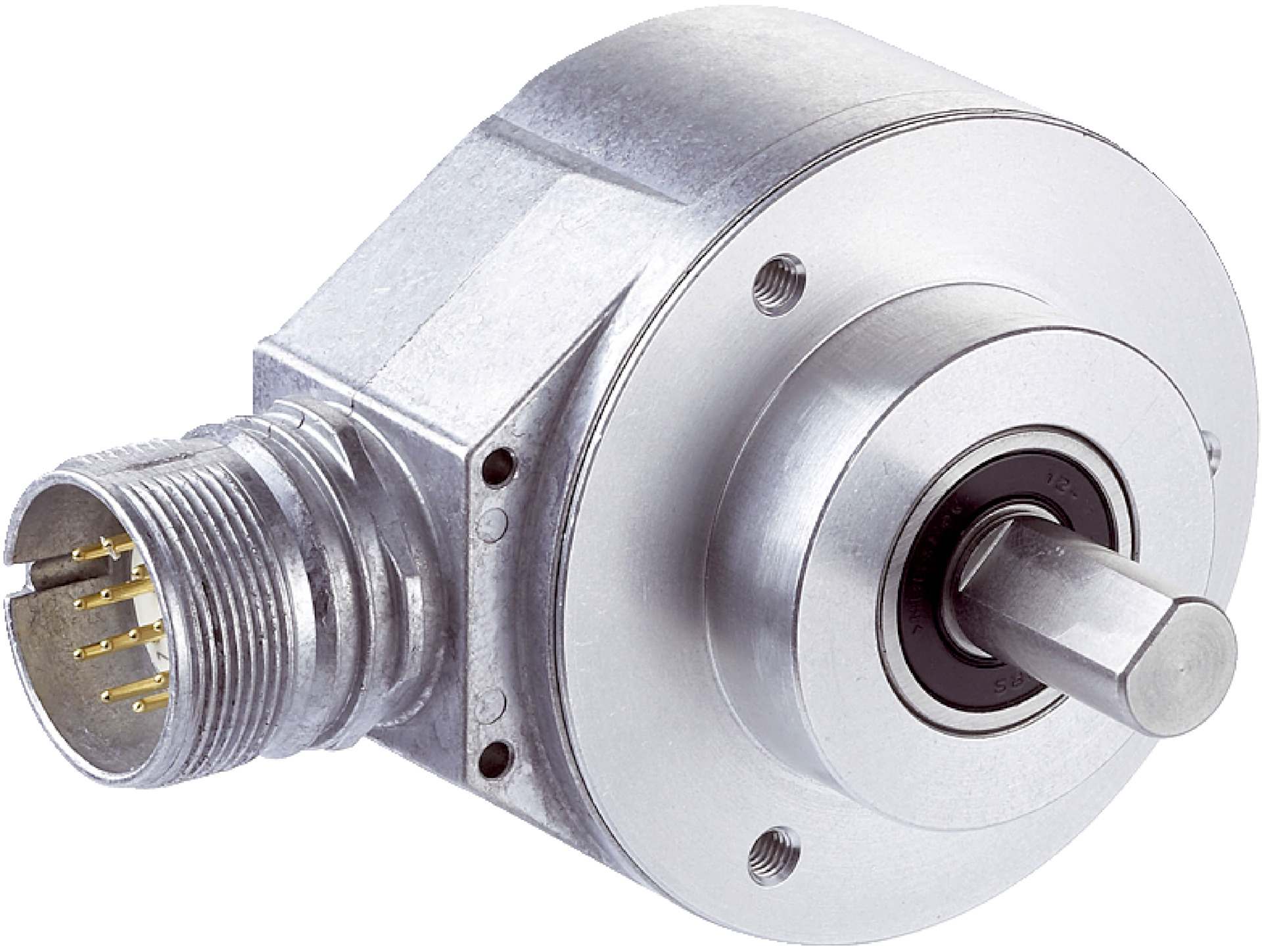

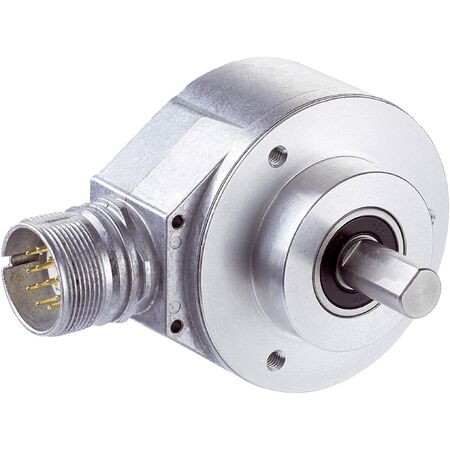

Absolute Encoder AFM60B-S4KA002048 | 2048 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60B-S4KA002048 offers high precision with a maximum resolution of 2,048 steps per revolution and robust IP65/IP67 protection. Ideal for industrial automation and robotics, this encoder features a solid shaft design and fast initialization time of 50 ms, ensuring reliable performance in demanding environments. With a wide operating temperature range from -40 °C to +100 °C, it’s built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60B-S4KA002048 | 2048 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1090021
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position encoder
Technical Specifications
- Max resolution: 2,048 steps/revolution x 4,096 revolutions (11 bit x 12 bit)
- Error limit: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft and aluminum die cast housing for durability
- IP65 shaft side and IP67 housing side protection
- Low operating torque and high permissible shaft loading
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Sin/Cos output
- Reverse polarity protection included
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low power consumption of ≤ 0.7 W minimizes energy use
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60B-S4KA002048 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
