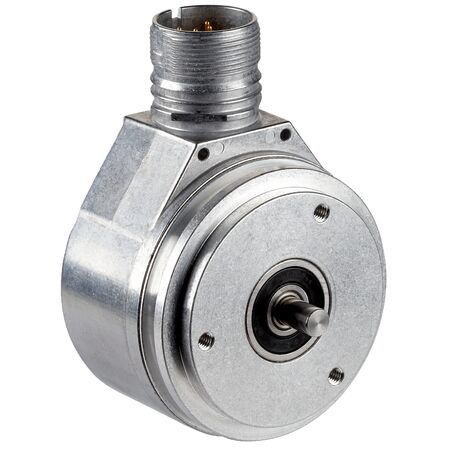

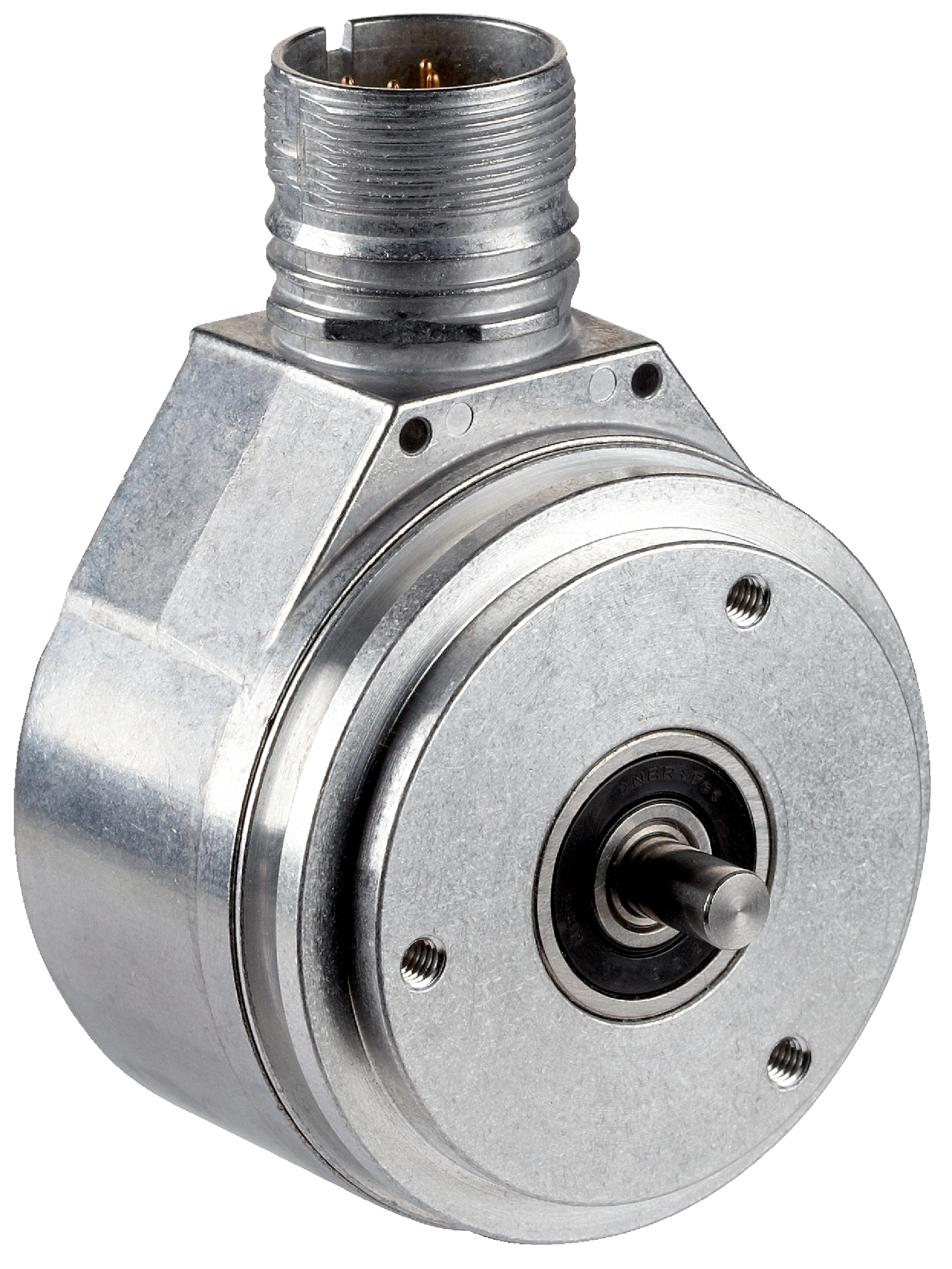

Absolute Encoder AFM60E-S1AA001024 | 1,024 Steps/Rev | IP65/IP67 Protection | by SICK

BRAND: SICK
SKU: 1051520
$1,485.40 List price: $1,866.90
+ −
30 Days Return Delivery Options
The Absolute Encoder AFM60E-S1AA001024 offers high precision with 1,024 steps per revolution and robust IP65/IP67 protection, making it ideal for industrial automation and robotics. Designed for reliable position and speed measurement, it features a solid shaft design and low power consumption, ensuring durability and efficiency in demanding environments.

Product Name/Title: Absolute Encoder AFM60E-S1AA001024 | 1,024 Steps/Rev | IP65/IP67 Protection | by SICK

Brand: SICK

SKU: 1051520

Alternatively Known As: Rotary encoder, SSI absolute encoder, position encoder, industrial encoder, servo encoder

Technical Specifications
  • Resolution: 1,024 steps per revolution (10 bit), 4,096 revolutions (12 bit)
  • Error limit: 0.2°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI with Gray code
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Connection: Male M23, 12-pin radial connector
  • Shaft diameter: 6 mm with flat
  • Operating temperature: 0 °C to +85 °C
  • Storage temperature: -40 °C to +100 °C
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Mechanical design: Solid shaft, servo flange
  • Start-up torque: < 0.5 Ncm
  • Operating torque: < 0.3 Ncm
  • Permissible shaft loading: 80 N radial, 40 N axial
  • Operating speed: ≤ 9,000 min⁻¹
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Moment of inertia: 6.2 gcm²
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 1,024 steps per revolution and 4,096 revolutions
  • Robust solid shaft design with stainless steel shaft and aluminum housing
  • IP65 shaft side and IP67 housing side protection for harsh environments
  • Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Reverse polarity protection and low power consumption (≤ 0.7 W)
  • Communication via SSI interface with Gray code output
  • Adjustable code sequence parameter (CW/CCW)
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
  • Resistance to shocks (50 g) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Safety-related motion control applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption reduces energy usage in industrial applications
  • Durable design minimizes replacement frequency and electronic waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFM60E-S1AA001024 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
