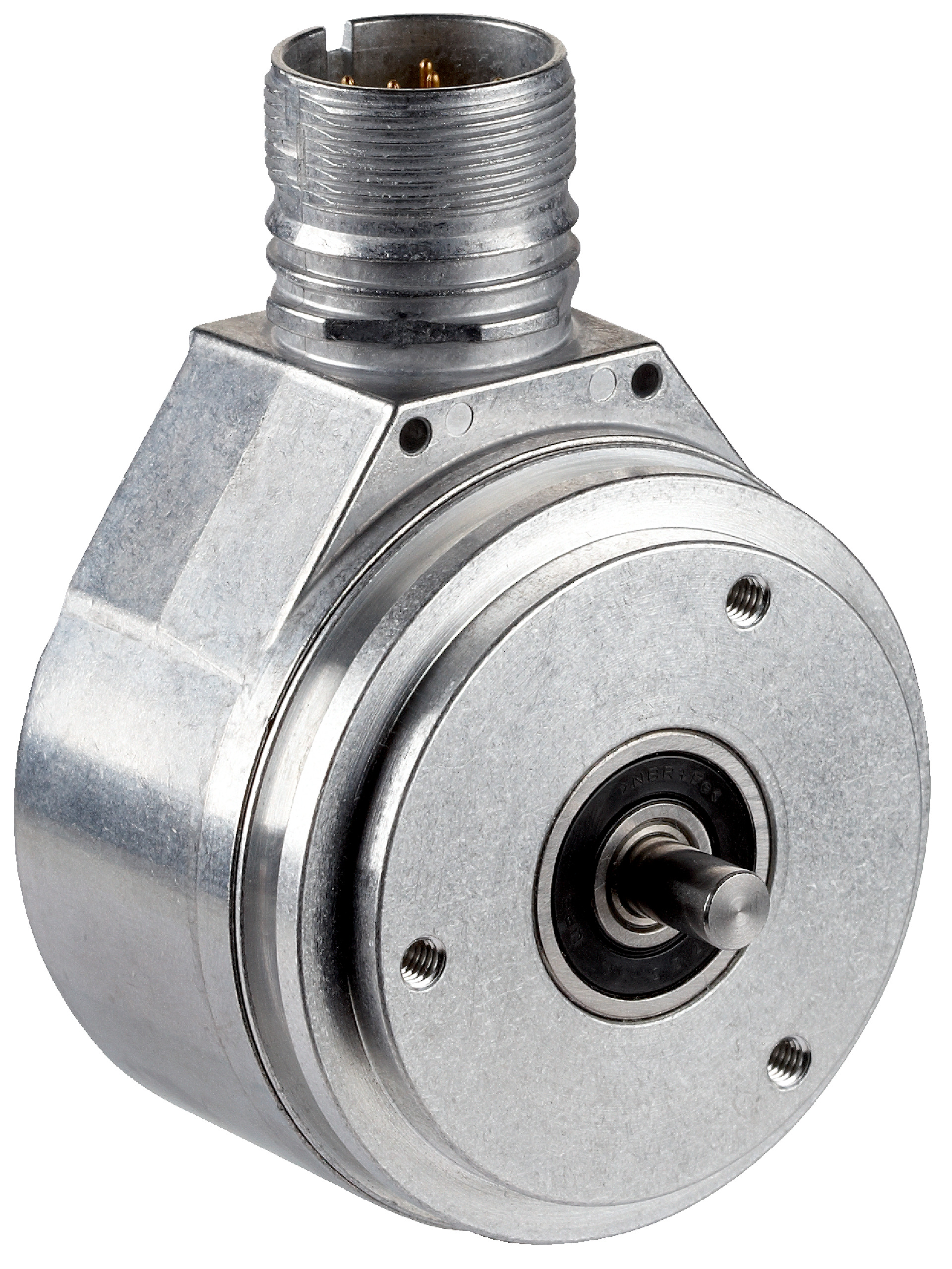

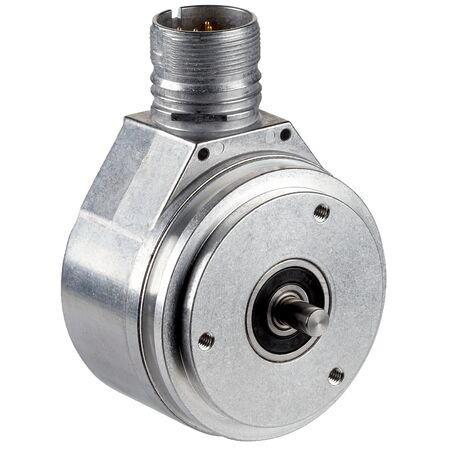

Absolute Encoder AFM60E-S1KA004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60E-S1KA004096 offers high precision with 4,096 steps per revolution and robust IP65/IP67 protection, making it ideal for industrial automation and control systems. Designed for reliability, it features a solid stainless steel shaft and low power consumption, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60E-S1KA004096 | 4096 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1061403
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Industrial encoder
Technical Specifications
- Resolution: 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.2°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 1 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: < 0.5 Ncm
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0 °C to +85 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- Communication via SSI interface with Sin/Cos output
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- High reliability with MTTFD of 250 years and bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from 0 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60E-S1KA004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precision position measurement applications.
