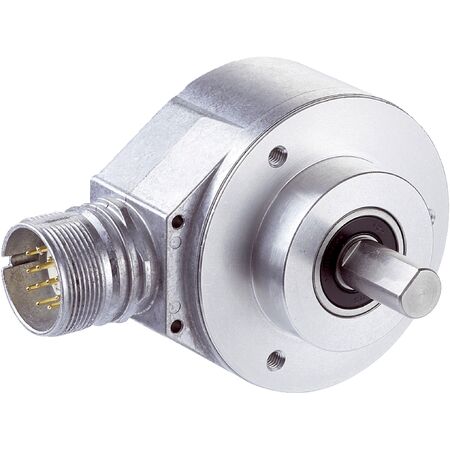

Absolute Encoder AFM60E-S4AA000512 | 512 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFM60E-S4AA000512 delivers high precision with 512 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. With an IP65/IP67 rating for dust and water protection, this encoder ensures reliable performance in demanding environments. Its robust design features a stainless steel shaft and low power consumption, making it perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60E-S4AA000512 | 512 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1038078
Alternatively Known As: Rotary encoder, Absolute rotary encoder, Position encoder, Industrial encoder, SSI encoder
Technical Specifications
- Max resolution: 512 steps per revolution (9 bit) x 4,096 revolutions (12 bit)
- Error limit: 0.2°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Connection: Male M23, 12-pin radial connector
- Shaft diameter: 10 mm with flat
- Operating temperature: 0 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 512 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65/IP67 rated for protection against dust and water
- Low start-up and operating torque for minimal mechanical load
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Adjustable code sequence and counting direction (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- High resistance to shocks (50 g) and vibrations (20 g)
Professional Installation Requirements
- Installation by qualified personnel with experience in electrical and automation systems is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate rotational feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60E-S4AA000512 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
