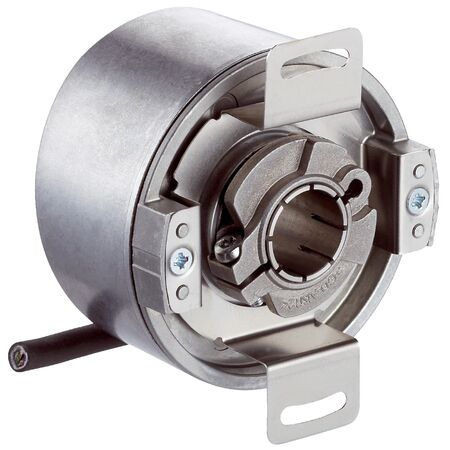

Absolute Encoder AFM60E-THAK002048 | 2048 Steps/Rev | IP65/IP67 Rated | High Repeatability | by SICK

BRAND: SICK
SKU: 1054193
$1,759.80 List price: $2,211.80
+ −
30 Days Return Electricians Unlock Trade Access
The Absolute Encoder AFM60E-THAK002048 offers high resolution with 2,048 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics applications. With a robust through hollow shaft design and an impressive repeatability of 0.002°, this encoder ensures precise positioning and control. Its IP65/IP67 rating provides excellent protection against dust and water, while low power consumption enhances energy efficiency.

Product Name/Title: Absolute Encoder AFM60E-THAK002048 | 2048 Steps/Rev | IP65/IP67 Rated | High Repeatability | by SICK

Brand: SICK

SKU: 1054193

Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, through hollow shaft encoder

Technical Specifications
  • Max resolution: 2,048 steps per revolution (11 bit) x 4,096 revolutions (12 bit)
  • Error limits: 0.2°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray code
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W
  • Mechanical design: Through hollow shaft with 15 mm diameter
  • Operating speed: ≤ 9,000 min⁻¹
  • Operating temperature range: 0 °C to +85 °C
  • Enclosure rating: IP65 (shaft side), IP67 (housing side)
  • Weight: 0.2 kg
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 2,048 steps per revolution and 4,096 revolutions
  • Robust through hollow shaft mechanical design with stainless steel shaft
  • High repeatability with standard deviation of 0.002°
  • IP65 rated on shaft side and IP67 on housing side for protection against dust and water
  • Low power consumption of ≤ 0.7 W
  • Reverse polarity protection included
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Communication via SSI interface with adjustable code sequence parameter
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Safety-related monitoring and control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable materials and robust design extend product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.

Available Now

The SICK AFM60E-THAK002048 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
