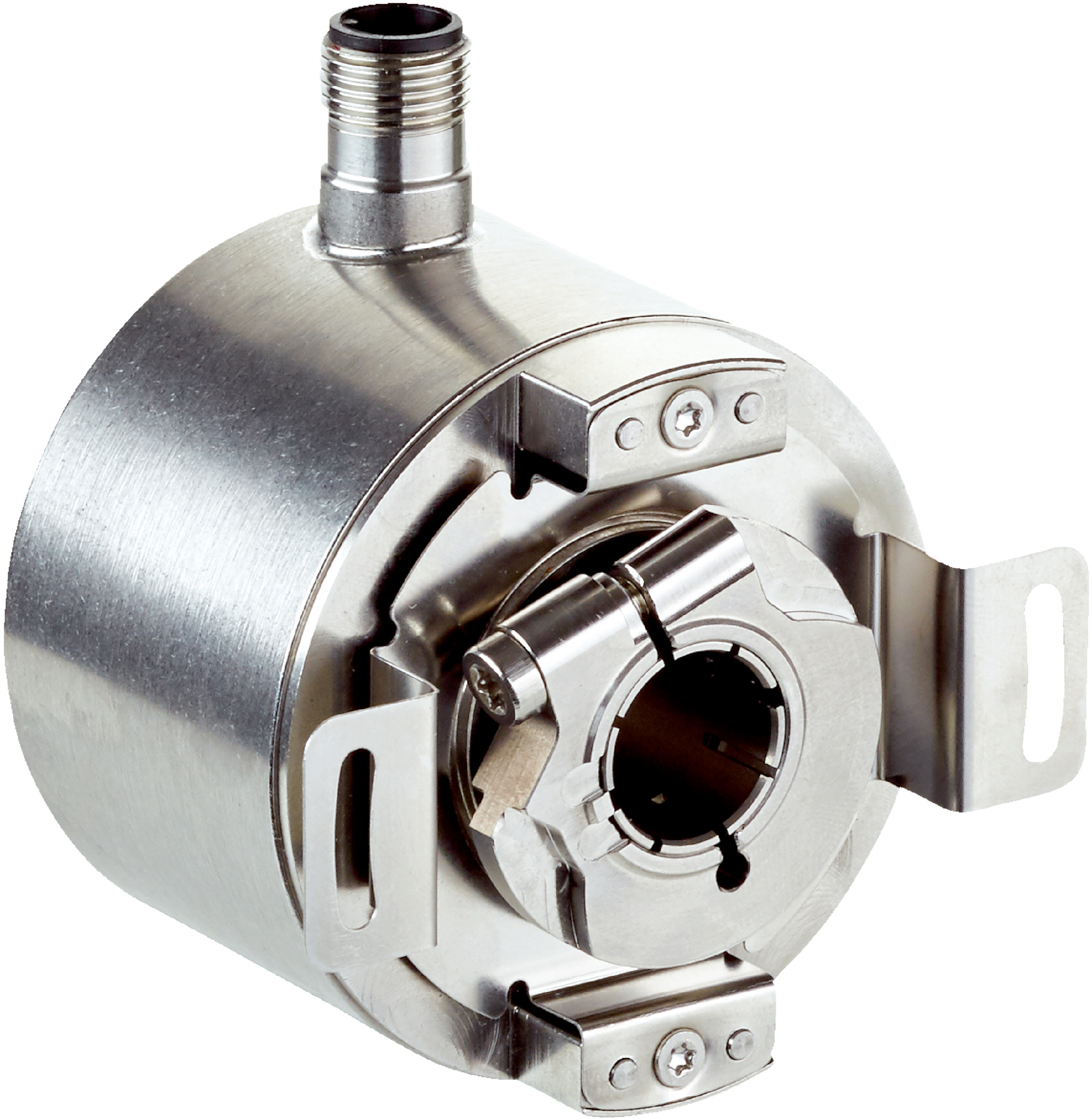

Absolute Encoder AFM60I-BEKC262144 | 262,144 Steps/Rev | IP67 Rated | High Mechanical Endurance | by SICK
The Absolute Encoder AFM60I-BEKC262144 offers high resolution with 262,144 steps per revolution, making it ideal for industrial automation and robotics requiring precise position measurement. With a robust stainless steel design and IP67 rating, it ensures durability and reliability in harsh environments, while its low power consumption and fast initialization time enhance operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-BEKC262144 | 262,144 Steps/Rev | IP67 Rated | High Mechanical Endurance | by SICK
Brand: SICK
SKU: 1082545
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos analog differential signals
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 12 mm diameter
- Operating torque: 0.5 Ncm at +20 °C
- Operating speed: 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange for durability
- Blind hollow shaft design with front clamp shaft characteristics
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W with supply voltage 4.5 to 32 V DC
- Reverse polarity protection included
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Sin/Cos analog differential signals
- High mechanical endurance with bearing lifetime of 3.0 x 10^9 revolutions
- Operating temperature range from -40 °C to +100 °C
- Resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BEKC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical position sensing applications.
