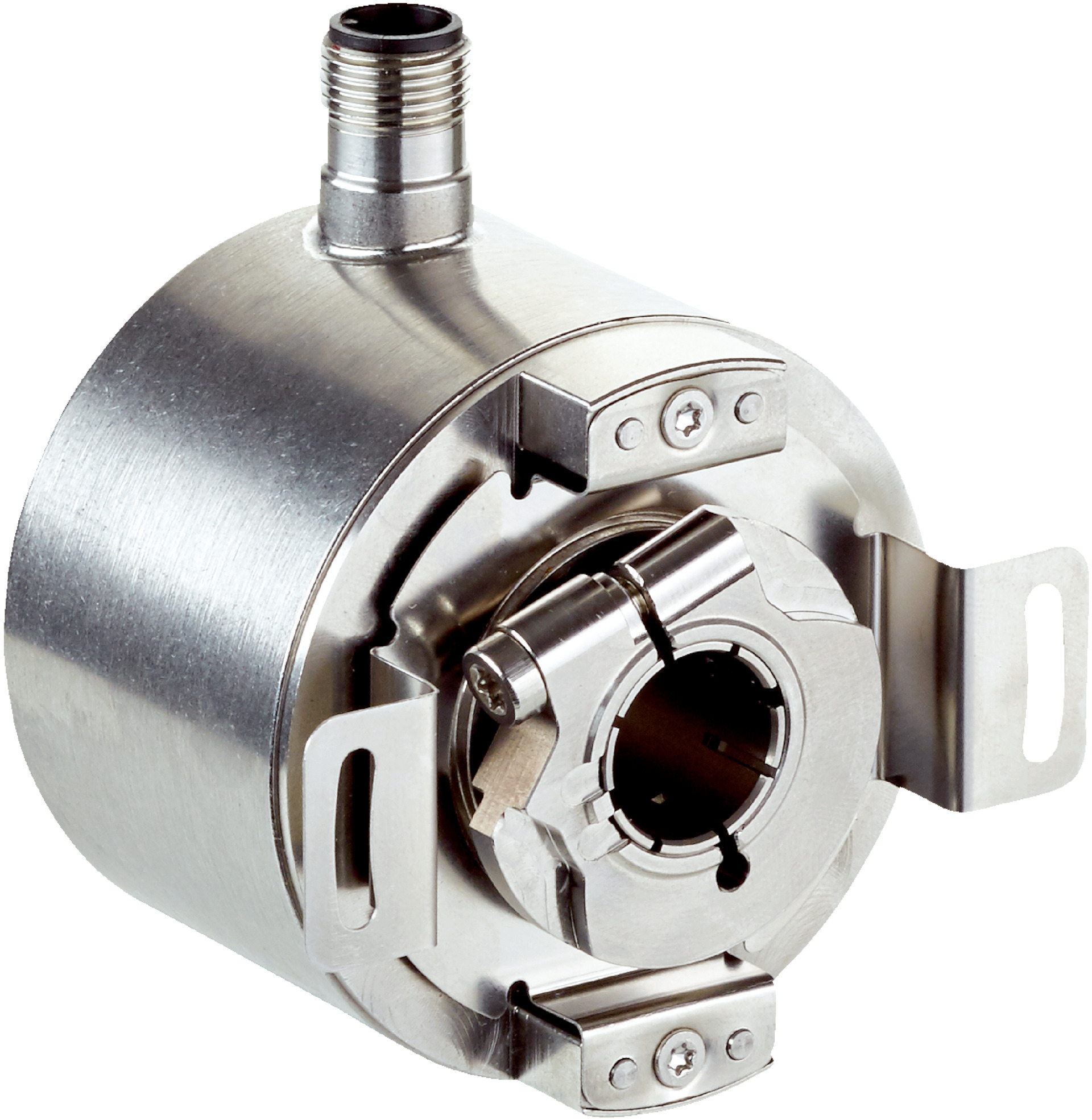

Absolute Encoder AFM60I-BHAC004096 | High Resolution 4096 Steps | IP67 Rated | by SICK
The Absolute Encoder AFM60I-BHAC004096 delivers high precision with a maximum resolution of 4,096 steps per revolution, making it ideal for industrial automation and robotics. With an IP67 rated enclosure, it ensures protection against dust and water, while its robust stainless steel design guarantees durability. Perfect for applications requiring accurate position feedback, this encoder is built for reliability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-BHAC004096 | High Resolution 4096 Steps | IP67 Rated | by SICK
Brand: SICK
SKU: 1080664
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 4,096 steps/rev x 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial and axial
- Operating speed: 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP67 (shaft and housing side)
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.5 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust stainless steel V2A housing, flange, and shaft
- Blind hollow shaft design with front clamp
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W
- Reverse polarity protection
- High operating speed up to 6,000 min⁻¹
- Excellent repeatability with standard deviation of 0.002°
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BHAC004096 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
