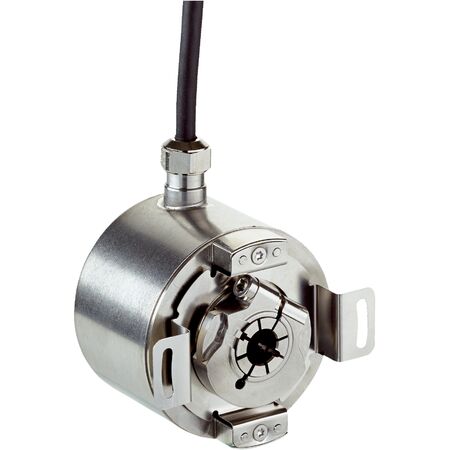

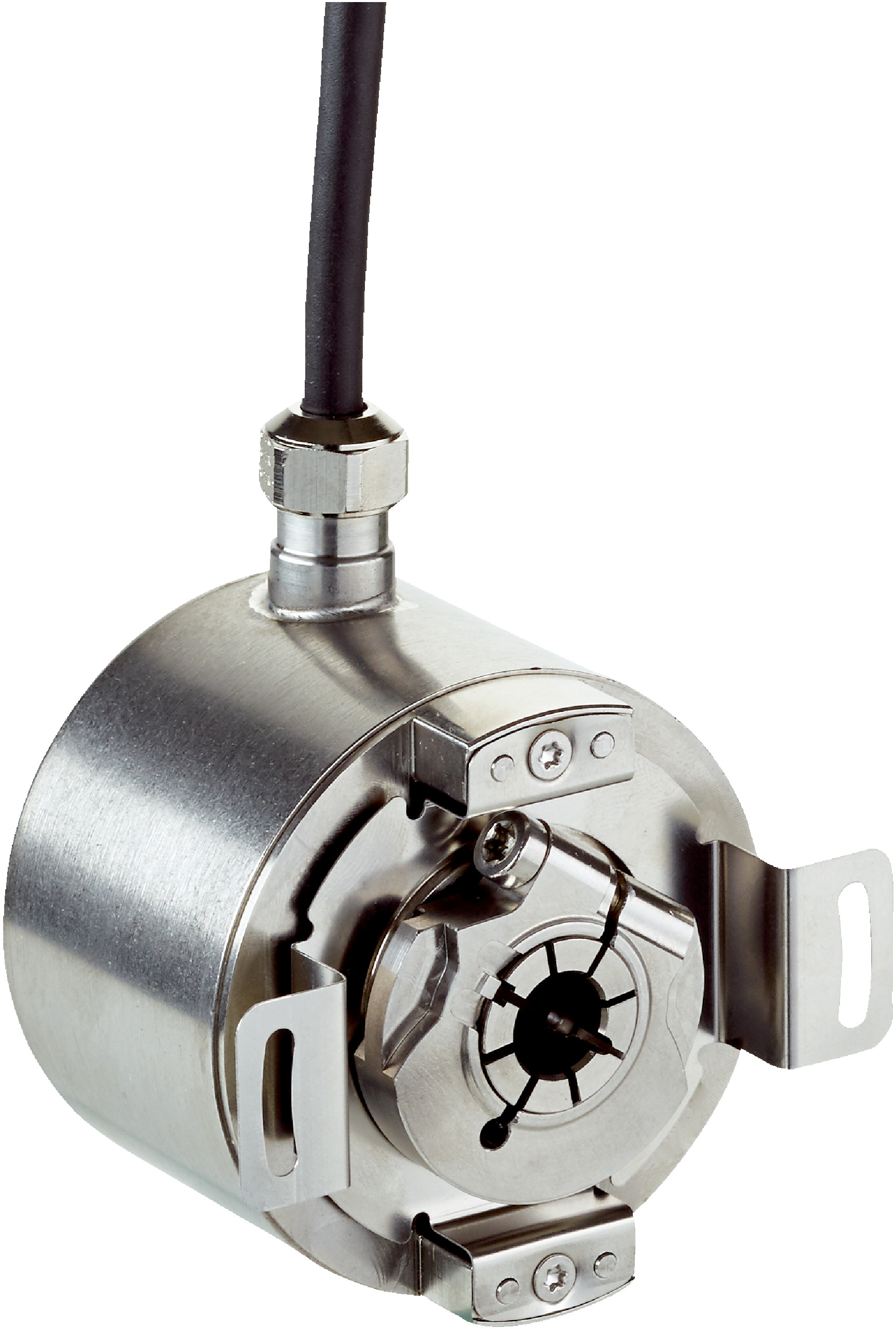

Absolute Encoder AFM60I-BHPM262144 | 262,144 Steps/Rev | IP67 Rated | High Mechanical Durability | by SICK
The Absolute Encoder AFM60I-BHPM262144 offers high precision with 262,144 steps per revolution and a robust IP67 rated enclosure, making it ideal for industrial automation and control systems. Designed for reliability, it features a low power consumption of ≤ 0.5 W and a fast initialization time of just 50 ms, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-BHPM262144 | 262,144 Steps/Rev | IP67 Rated | High Mechanical Durability | by SICK
Brand: SICK
SKU: 1095138
Alternatively Known As: Rotary Absolute Encoder, SSI Absolute Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Operating torque: 0.5 Ncm at +20 °C
- Start up torque: 1 Ncm at +20 °C
- Permissible radial movement static: ± 0.3 mm
- Permissible axial movement static: ± 0.5 mm
- Permissible radial movement dynamic: ± 0.1 mm
- Permissible axial movement dynamic: ± 0.1 mm
- Operating speed: 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with front clamp
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Low power consumption ≤ 0.5 W
- Reverse polarity protection included
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment, connection, and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
- High precision rotary position measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable stainless steel construction extends product lifespan, reducing waste
- High reliability minimizes downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BHPM262144 Absolute Encoder is available for immediate purchase, ideal for high precision industrial automation and safety applications.
