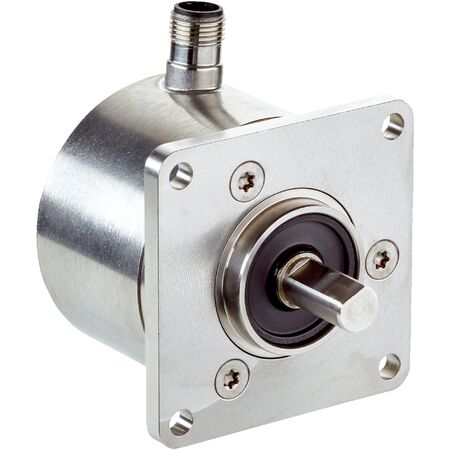

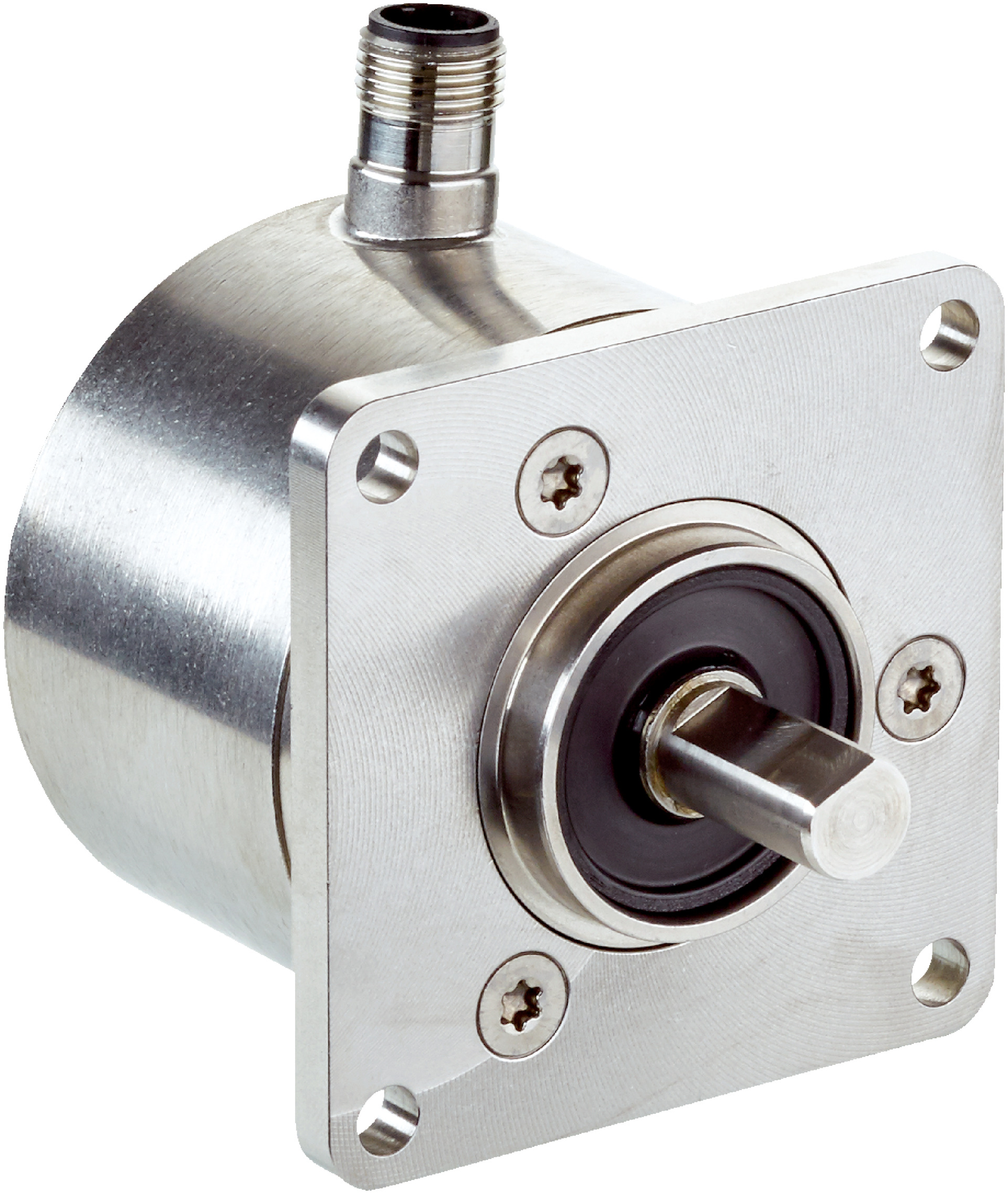

Absolute Encoder AFM60I-Q4TC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Absolute Encoder AFM60I-Q4TC262144 offers high precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and an IP67 rating, it ensures durability and protection against dust and water. With a low power consumption of ≤ 0.5 W and a high operating speed of up to 9,000 min⁻¹, this encoder is perfect for safety-critical applications requiring reliable position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-Q4TC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1133093
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental TTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M12, 12-pin, radial
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Materials: Stainless steel V2A for shaft, flange, and housing
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft side and housing side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange for durability
- Solid shaft with flat, 10 mm diameter and 19 mm length
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W and supply voltage range 4.5 to 32 V DC
- Communication via SSI and incremental TTL interface
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related applications in machinery control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-Q4TC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
