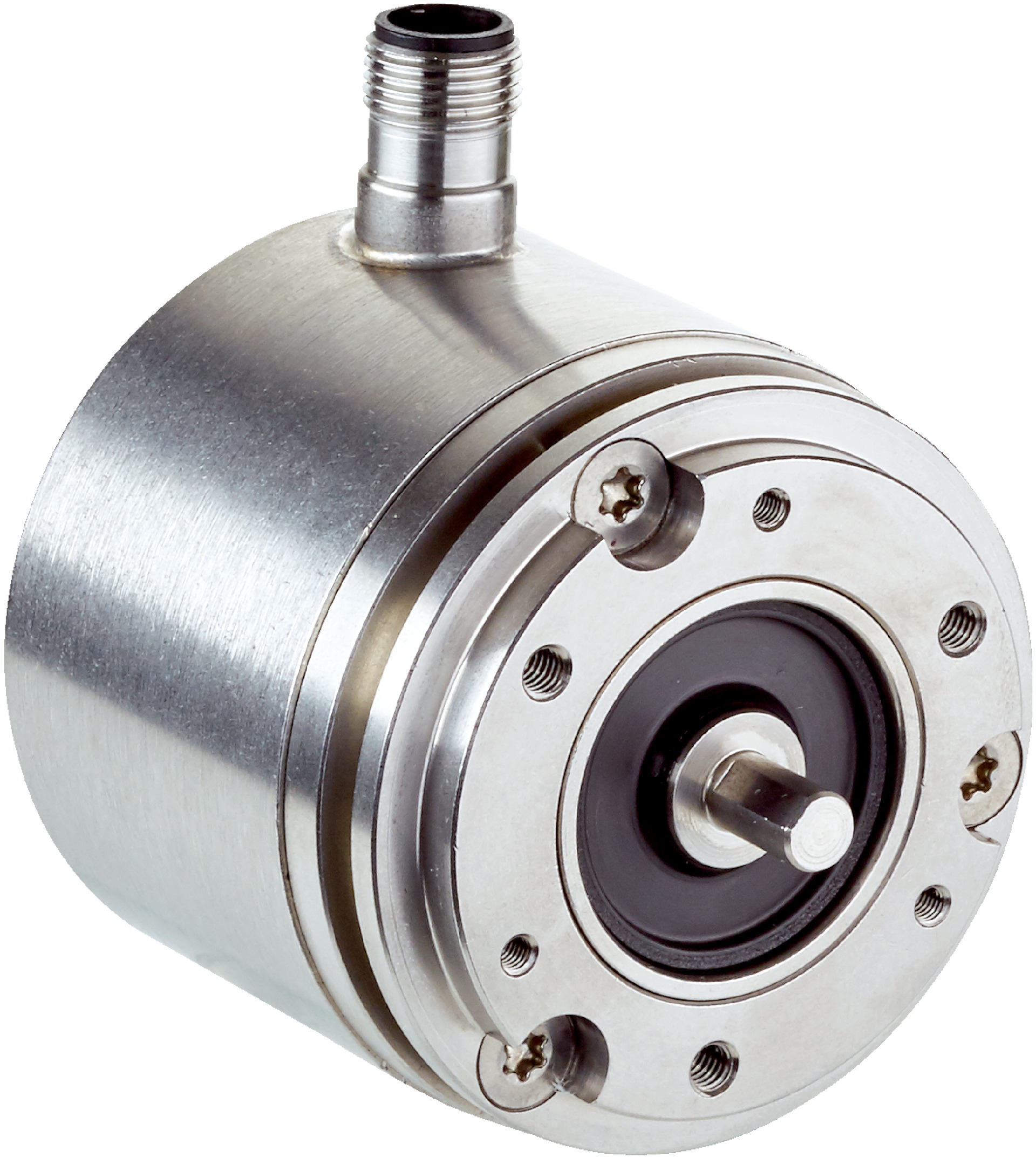

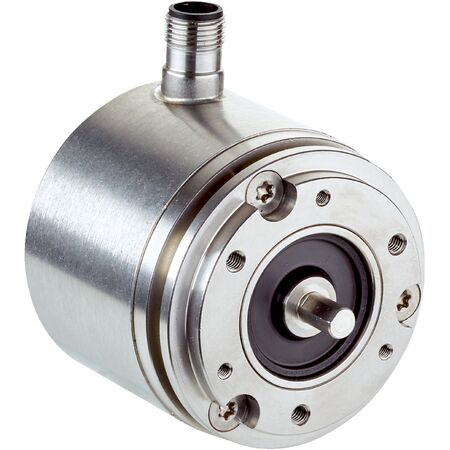

Absolute Encoder AFM60I-S1PC262144 | 262,144 Steps/Rev | IP67 Rated | High Resolution | by SICK
The Absolute Encoder AFM60I-S1PC262144 offers high precision with 262,144 steps per revolution and an IP67 rated enclosure, making it perfect for industrial automation and robotics. Designed for durability and low power consumption, it ensures reliable performance in safety-critical applications, with fast initialization and exceptional mechanical endurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-S1PC262144 | 262,144 Steps/Rev | IP67 Rated | High Resolution | by SICK
Brand: SICK
SKU: 1083999
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Operating torque: 0.5 Ncm at 20 °C
- Start up torque: 1 Ncm at 20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP67
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange for durability
- Solid shaft with flat, 6 mm diameter and 10 mm length
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W with reverse polarity protection
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- High mechanical endurance with bearing lifetime of 3.0 x 10^9 revolutions
- Operating temperature range from -40 °C to +100 °C
- Resistance to shocks up to 100 g and vibration up to 10 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary feedback
- Safety-related machinery monitoring
- Servo motor feedback systems
- High-speed rotary equipment monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption minimizes energy usage
- Long bearing lifetime reduces maintenance and material consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-S1PC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
