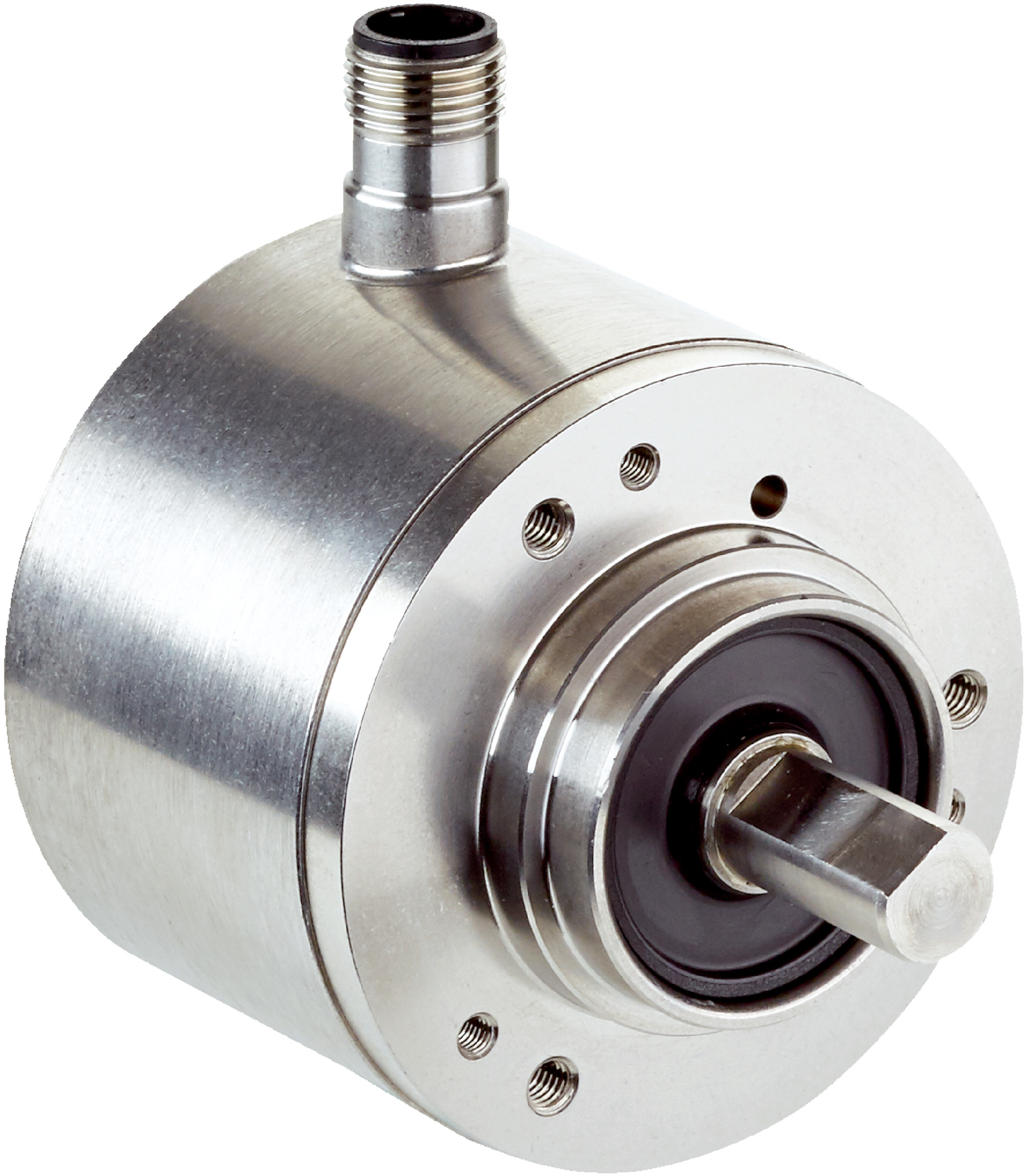

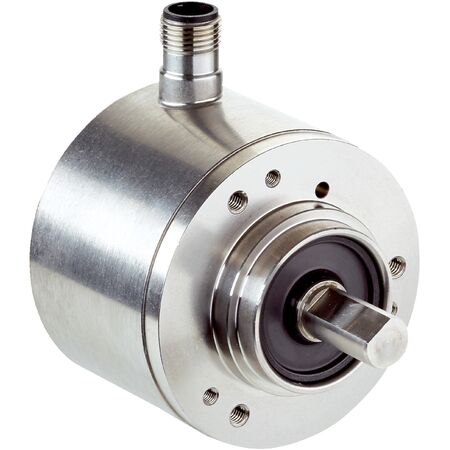

Absolute Encoder AFM60I-S4KC262144 | 262,144 Steps/Rev | IP67 Rated | Fast Positioning | by SICK
The Absolute Encoder AFM60I-S4KC262144 offers high resolution with 262,144 steps per revolution, making it ideal for industrial automation and precision machinery. With a robust IP67-rated stainless steel housing, it ensures durability in harsh environments. Designed for safety-critical applications, this encoder features a fast position forming time of less than 1 µs and low power consumption, making it a reliable choice for motion control and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-S4KC262144 | 262,144 Steps/Rev | IP67 Rated | Fast Positioning | by SICK
Brand: SICK
SKU: 1079003
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Sin/Cos analog differential signals
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating speed: 9,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 (shaft and housing side)
- Bearing lifetime: 3.0 x 10^9 revolutions
- Start-up torque: 1 Ncm
- Operating torque: 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel housing and shaft with IP67 protection
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- Fast position forming time of less than 1 µs
- Communication via SSI interface with Sin/Cos analog differential signals
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
- Compliance with RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-S4KC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
