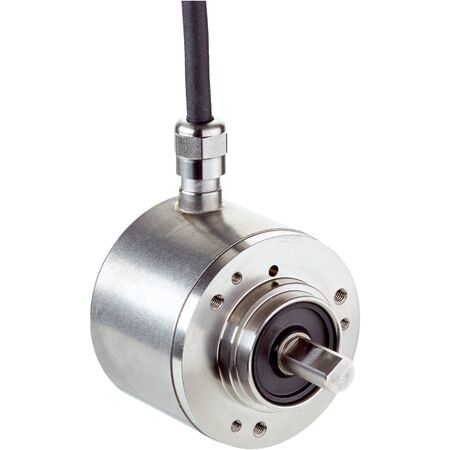

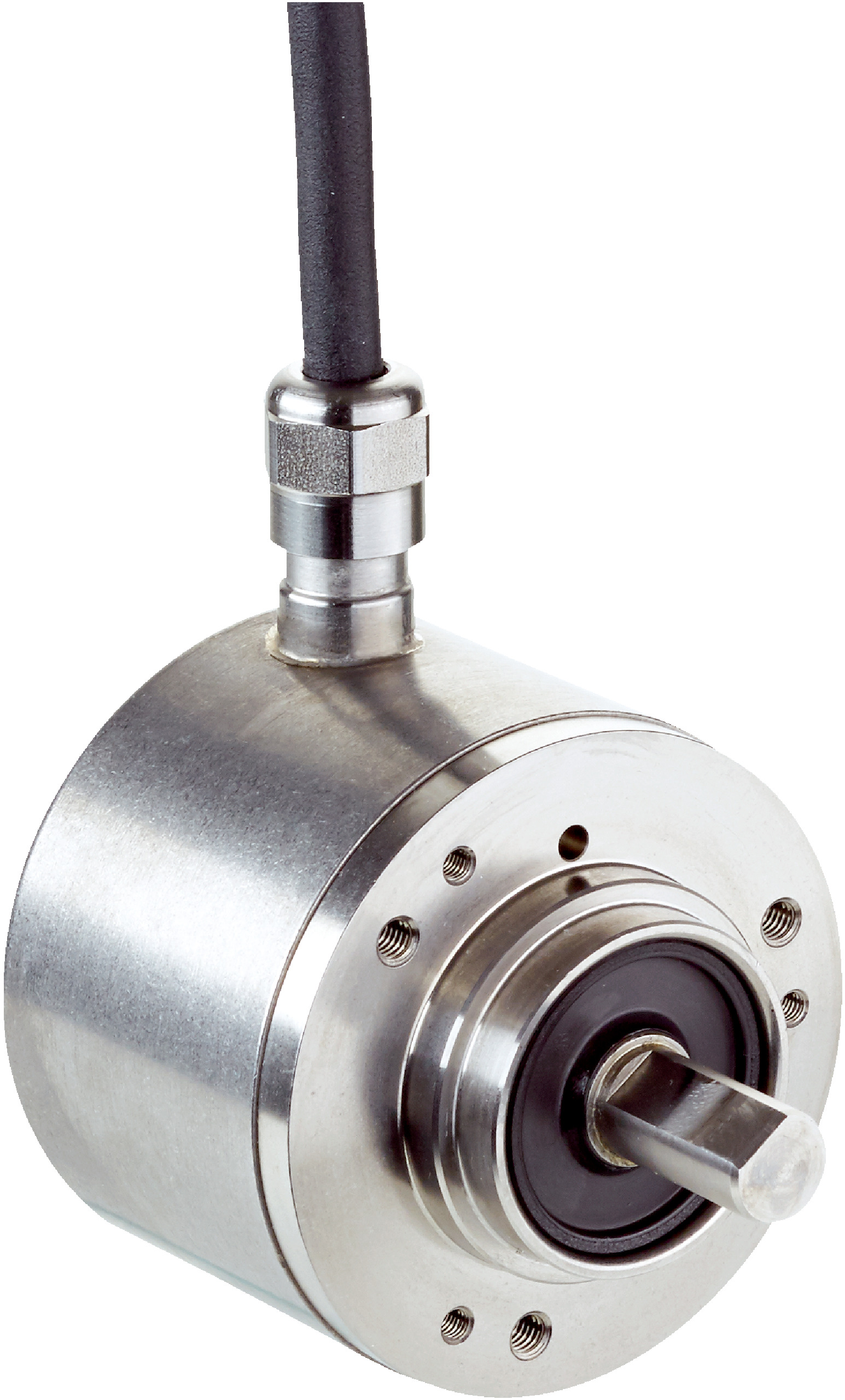

Absolute Encoder AFM60I-S4RK262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Absolute Encoder AFM60I-S4RK262144 offers high precision with 262,144 steps per revolution and a robust IP67 rated enclosure, making it ideal for industrial automation and robotics. Designed for durability, it features a stainless steel housing and low power consumption, ensuring reliable performance in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-S4RK262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1083993
Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + incremental, Gray code
- Clock frequency: 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Connection: 12-wire cable, radial, 1.5 m
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: 1 Ncm
- Operating torque: 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature: -40 °C to +100 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust stainless steel V2A housing, shaft, and flange for durability
- Solid shaft with flat, 10 mm diameter and 19 mm length
- IP67 rated enclosure for protection against dust and water
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- Communication via SSI and incremental interface with Gray code
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- High resistance to shocks (100 g) and vibration (10 g)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary feedback
- Machine tools and manufacturing equipment
- Safety-related applications in machinery control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-S4RK262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
