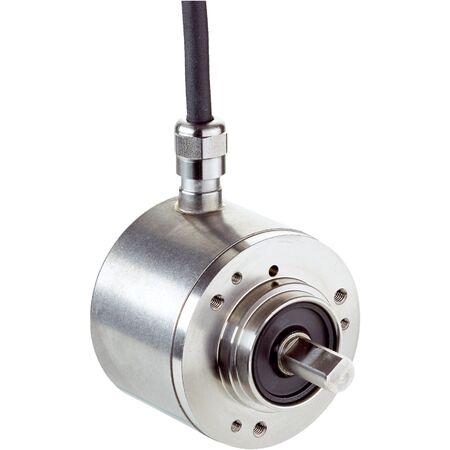

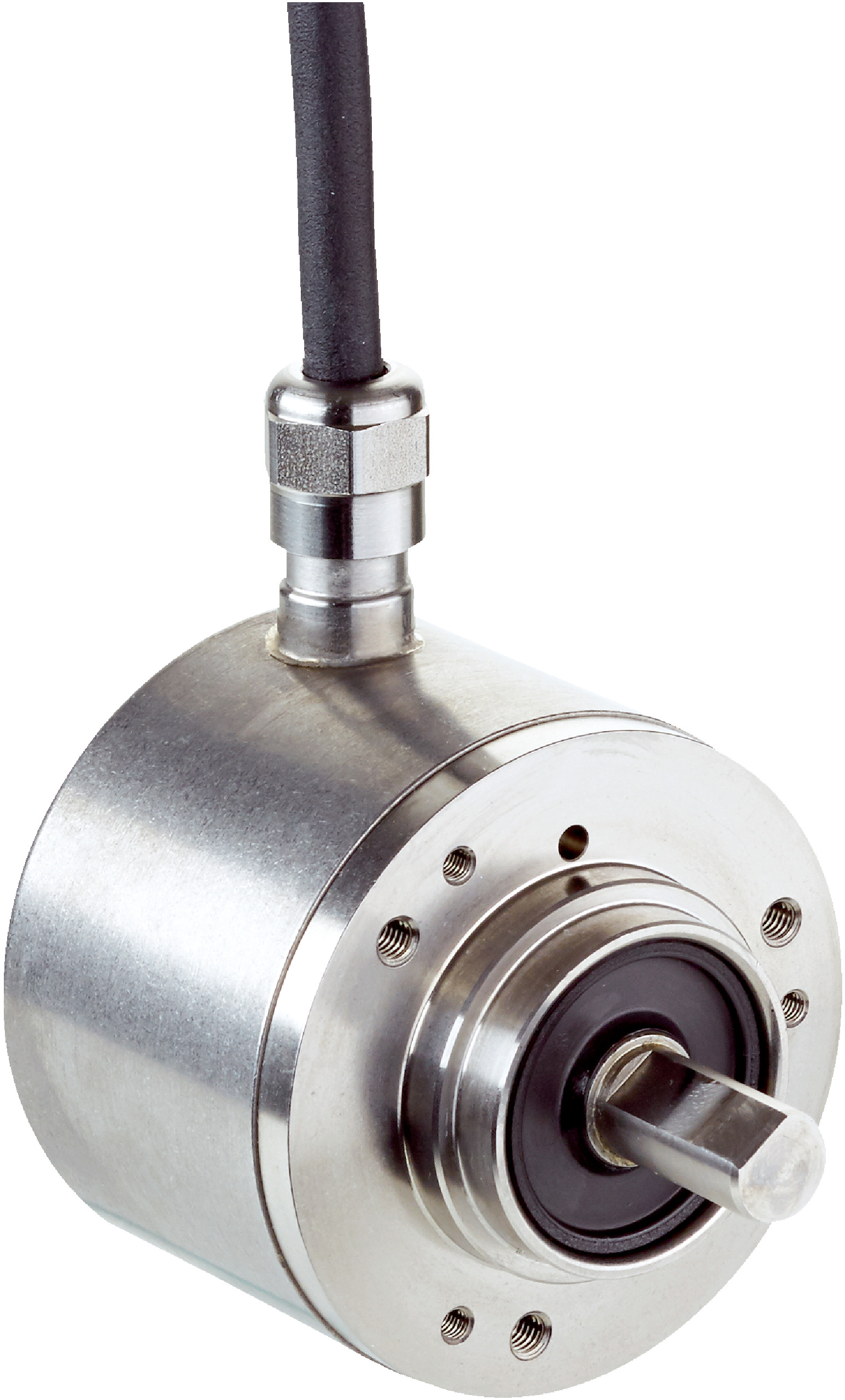

Absolute Encoder AFM60I-S4SK004096 | 4096 Steps/Rev | IP67 Rated | Fast Initialization | by SICK
The Absolute Encoder AFM60I-S4SK004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With a robust IP67 rated stainless steel housing, it ensures durability in harsh environments. Fast initialization in just 50 ms and a wide operating temperature range from -40°C to +100°C make it perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFM60I-S4SK004096 | 4096 Steps/Rev | IP67 Rated | Fast Initialization | by SICK
Brand: SICK
SKU: 1114389
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position sensor
Technical Specifications
- Resolution: 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos analog differential signals
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating torque: 0.5 Ncm at +20°C
- Start up torque: 1 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP67
- Operating temperature range: -40°C to +100°C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with 10 mm diameter and flat for secure mounting
- Communication via SSI interface with Sin/Cos analog differential signals
- Fast initialization time of 50 ms and position forming time under 1 µs
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and manufacturing equipment
- Safety-related applications in machinery control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-S4SK004096 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
