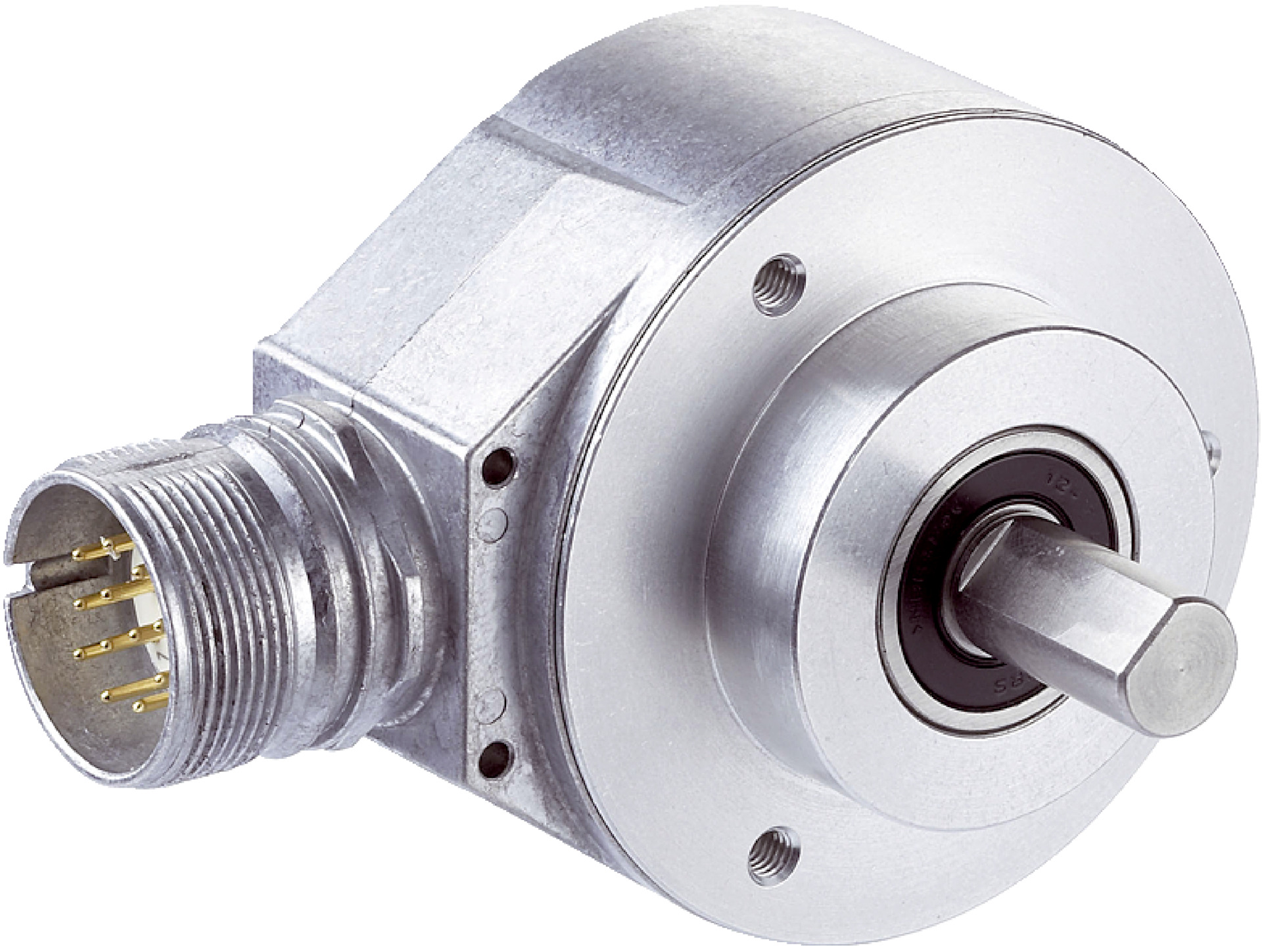

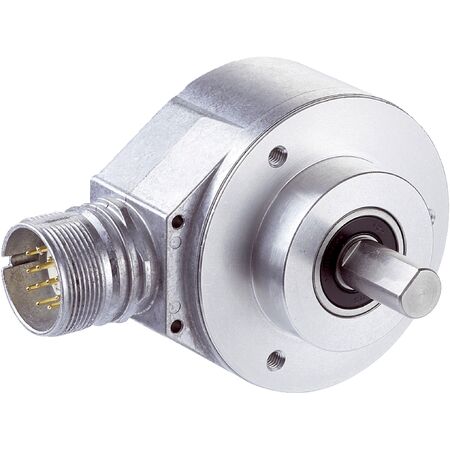

Absolute Encoder AFS60A-S4AA008192 | 8192 Steps/Rev | IP65/IP67 Protection | by SICK
The Absolute Encoder AFS60A-S4AA008192 offers high precision with 8,192 steps per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel solid shaft and designed for high operating speeds up to 9,000 min⁻¹, this encoder ensures reliable performance in demanding environments. With IP65 and IP67 ratings, it withstands harsh conditions, making it perfect for robotics and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60A-S4AA008192 | 8192 Steps/Rev | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1053807
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Number of steps per revolution: 8,192 (13 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution (13 bit)
- Robust solid shaft with stainless steel material and flat characteristic
- High operating speed up to 9,000 min⁻¹
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection included
- Male connector M23, 12-pin radial connection
- Gray code output with adjustable CW/CCW sequence
- Fast initialization time of 50 ms and position forming time < 1 µs
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S4AA008192 Absolute Encoder is available for immediate purchase, ideal for precise industrial automation and motion control applications.
