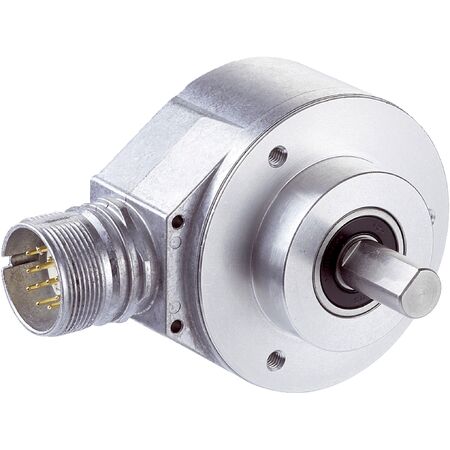

Absolute Encoder AFS60A-S4AA131072 | 131,072 Steps | Fast Initialization | IP65/IP67 Rated | by SICK
The Absolute Encoder AFS60A-S4AA131072 offers high precision with 131,072 steps per revolution, making it ideal for industrial automation and robotics. With a robust solid shaft design and fast initialization time of just 50 ms, this encoder ensures reliable performance in demanding environments. Its IP65/IP67 rating provides excellent protection against dust and water, making it suitable for various applications including machine tool feedback and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60A-S4AA131072 | 131,072 Steps | Fast Initialization | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1054929
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, High resolution encoder, Industrial position sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Number of steps per revolution: 131,072 (17 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High resolution with 131,072 steps per revolution (17 bit)
- Robust solid shaft design with stainless steel shaft and aluminum housing
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Low power consumption ≤ 0.7 W
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Wide operating temperature range from –40 °C to +100 °C
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Complies with multiple international certifications including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics and motion control systems
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S4AA131072 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
