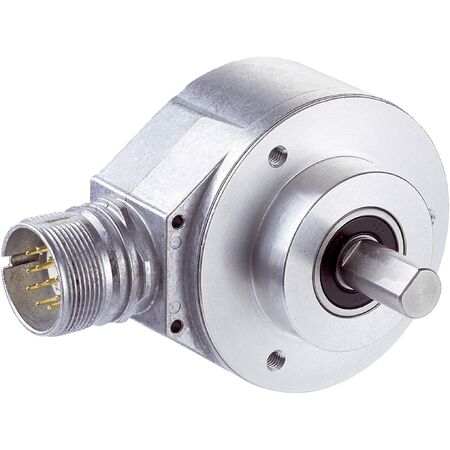

Absolute Encoder AFS60A-S4PA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The Absolute Encoder AFS60A-S4PA262144 offers high precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. Designed for reliability, it features a robust stainless steel shaft and a fast initialization time of just 50 ms. With an IP65/IP67 rating for dust and water protection, this encoder ensures accurate position feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60A-S4PA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037488
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, high resolution encoder, industrial position encoder
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.5 Ncm at 20°C
- Operating torque: < 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- Low start-up torque (<0.5 Ncm) and operating torque (<0.3 Ncm)
- High operating speed up to 9,000 min⁻¹
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time < 1 µs
- Communication via SSI interface with adjustable code sequence
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Certified to multiple international standards including cULus and China RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S4PA262144 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
