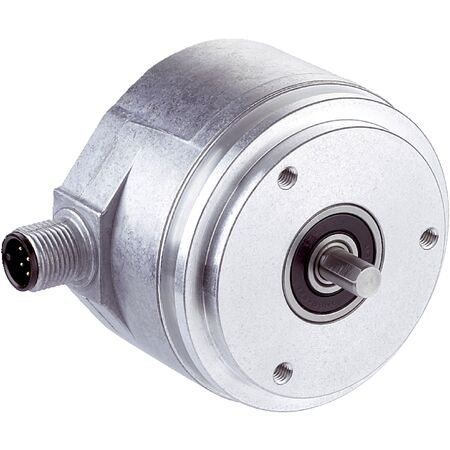

Absolute Encoder AFS60B-S1AC032768 | 32,768 Steps/Rev | Fast Initialization | IP65/IP67 Rated | by SICK
The Absolute Encoder AFS60B-S1AC032768 offers high precision with 32,768 steps per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel shaft and aluminum housing, it ensures durability and reliability in demanding environments. Fast initialization in just 50 ms and an impressive operating temperature range of -40 °C to +100 °C make it perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60B-S1AC032768 | 32,768 Steps/Rev | Fast Initialization | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037636
Alternatively Known As: Rotary encoder, SSI absolute encoder, position encoder, shaft encoder, industrial encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 32,768 steps per revolution (15 bit)
- Error limit: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Mechanical design: Solid shaft with flat, servo flange
- Shaft diameter: 6 mm, length: 10 mm
- Materials: Stainless steel shaft, aluminum flange and die-cast housing
- Start up torque: < 0.5 Ncm at 20 °C
- Operating torque: < 0.3 Ncm at 20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with adjustable code sequence parameters
- High reliability with MTTFD of 250 years according to EN ISO 13849-1
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Wide operating temperature range from -40 °C to +100 °C
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Long bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate shaft position feedback
- Servo motor control systems
- Machine tool positioning
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60B-S1AC032768 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
