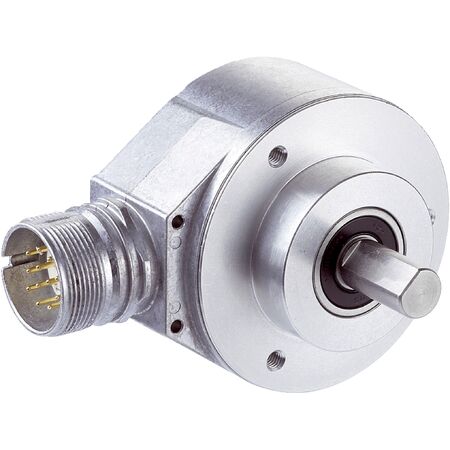

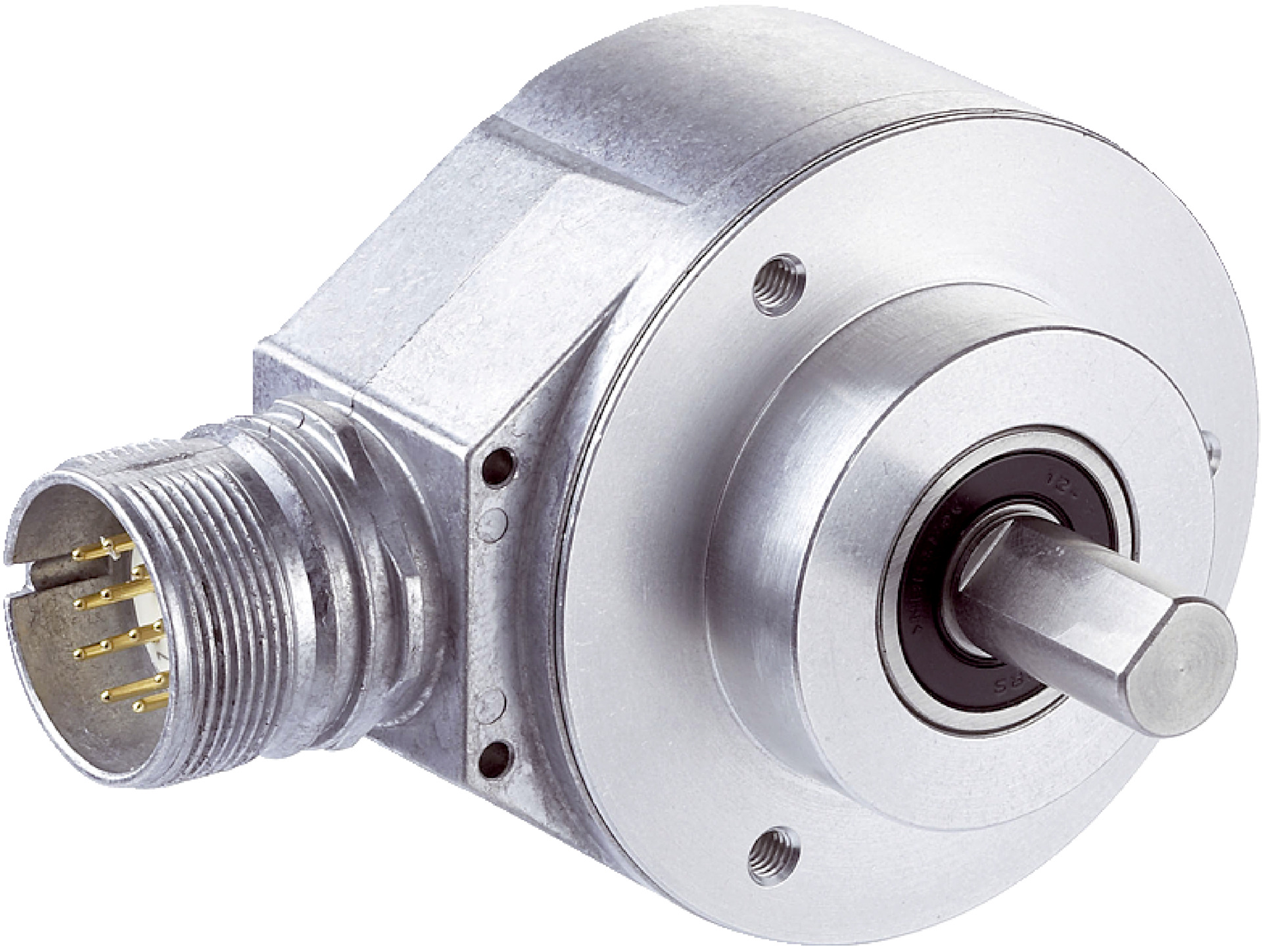

Absolute Encoder AFS60B-S4AA003600 | 3600 Steps/Rev | IP65/IP67 Rated | by SICK

BRAND: SICK
SKU: 1075226
$1,306.40 List price: $1,642.00
+ −
30 Days Return Delivery Options
The Absolute Encoder AFS60B-S4AA003600 offers high precision with 3,600 steps per revolution, making it ideal for industrial automation and robotics applications. Its robust design features a stainless steel shaft and low operating torque, ensuring reliable performance in demanding environments. With an IP65/IP67 rating, it provides excellent protection against dust and water, making it suitable for various industrial settings.

Product Name/Title: Absolute Encoder AFS60B-S4AA003600 | 3600 Steps/Rev | IP65/IP67 Rated | by SICK

Brand: SICK

SKU: 1075226

Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position sensor

Technical Specifications
  • MTTFD: 250 years (EN ISO 13849-1)
  • Max resolution: 3,600 steps per revolution
  • Error limits G: 0.05°
  • Repeatability standard deviation σr: 0.002°
  • Communication interface: SSI
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray
  • Clock frequency: ≤ 2 MHz
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm
  • Shaft length: 19 mm
  • Shaft material: Stainless steel
  • Flange material: Aluminum
  • Housing material: Aluminum die cast
  • Start up torque: < 0.5 Ncm (+20 °C)
  • Operating torque: < 0.3 Ncm (+20 °C)
  • Permissible shaft loading: 80 N (radial), 40 N (axial)
  • Operating speed: ≤ 9,000 min⁻¹
  • Moment of inertia of rotor: 6.2 gcm²
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Operating temperature range: –40 °C to +100 °C
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Robust mechanical design with solid shaft and face mount flange
  • Stainless steel shaft with flat for secure mounting
  • Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
  • High operating speed up to 9,000 min⁻¹
  • IP65 rated shaft side and IP67 rated housing side for protection against dust and water
  • Reverse polarity protection included
  • Fast initialization time of 50 ms
  • Gray code output with adjustable CW/CCW sequence
  • Long bearing lifetime of 3.0 x 10^9 revolutions
  • Complies with multiple international certifications including EU, UK, ACMA, and cULus
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Safety-related monitoring systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK AFS60B-S4AA003600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
