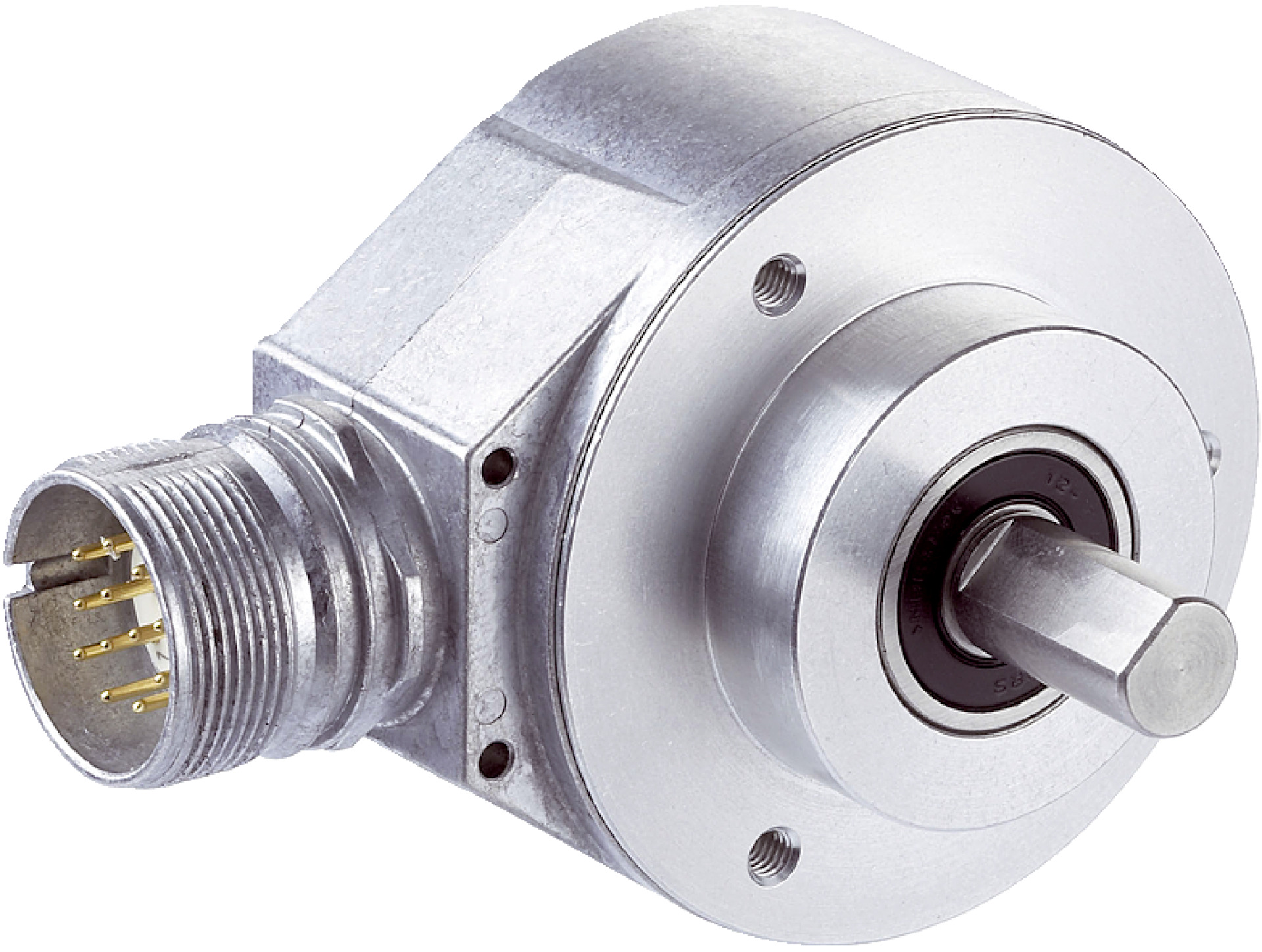

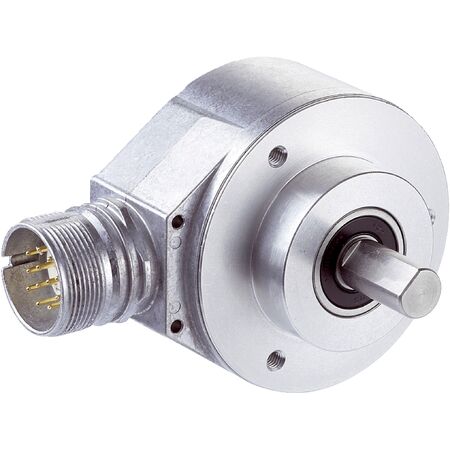

Absolute Encoder AFS60B-S4AA031680 | 31,680 Steps/Rev | IP65/IP67 Rated | Fast Initialization | by SICK
The Absolute Encoder AFS60B-S4AA031680 offers high precision with 31,680 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust stainless steel shaft and aluminum housing, it ensures durability and reliability. Its fast initialization time of 50 ms and position forming time under 1 µs enhance performance in motion control systems, while the IP65/IP67 rating provides protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60B-S4AA031680 | 31,680 Steps/Rev | IP65/IP67 Rated | Fast Initialization | by SICK
Brand: SICK
SKU: 1051830
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Industrial encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 31,680 steps per revolution
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: < 0.5 Ncm at +20 °C
- Operating torque: < 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 31,680 steps per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with adjustable code sequence parameters
- High reliability with MTTFD of 250 years according to EN ISO 13849-1
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Wide operating temperature range from -40 °C to +100 °C
- Low power consumption ≤ 0.7 W and reverse polarity protection
- High mechanical endurance with bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60B-S4AA031680 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
