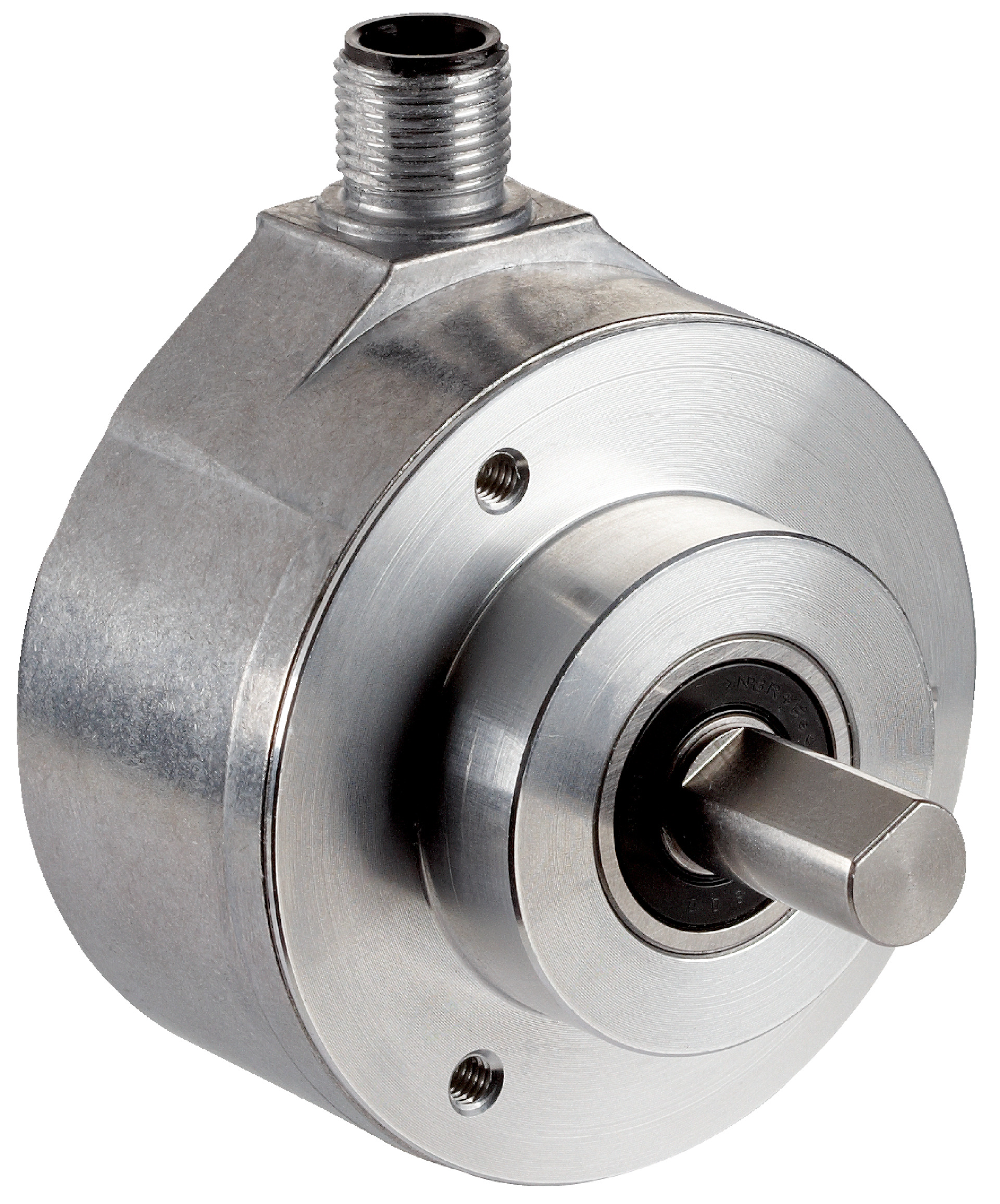

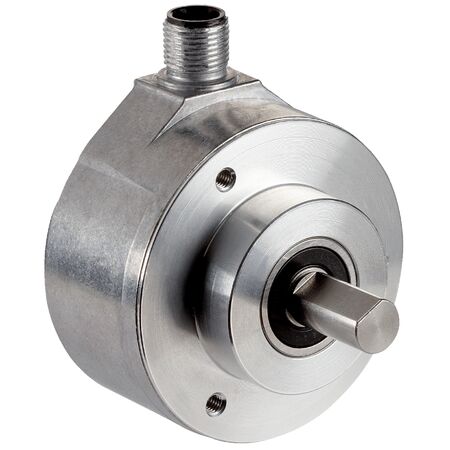

Absolute Encoder AFS60B-S4AC002048 | 2048 Steps/Rev | Low Error Limits 0.05° | IP65/IP67 Rated | by SICK
The Absolute Encoder AFS60B-S4AC002048 offers high precision with 2048 steps per revolution and an impressive error limit of just 0.05°. Designed for industrial automation, this encoder features a robust mechanical design and operates in extreme temperatures from -40 °C to +100 °C. With its IP65/IP67 rating, it ensures reliable performance in harsh environments, making it ideal for robotics, motion control, and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60B-S4AC002048 | 2048 Steps/Rev | Low Error Limits 0.05° | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1038282
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Industrial encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 2,048 steps per revolution (11 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Weight: 0.3 kg
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Very low error limits of 0.05°
- Excellent repeatability with standard deviation of 0.002°
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- Wide operating temperature range from –40 °C to +100 °C
- High resistance to shock (70 g) and vibration (30 g)
- IP65 rated on shaft side and IP67 on housing side for protection
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with adjustable code sequence
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFS60B-S4AC002048 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
