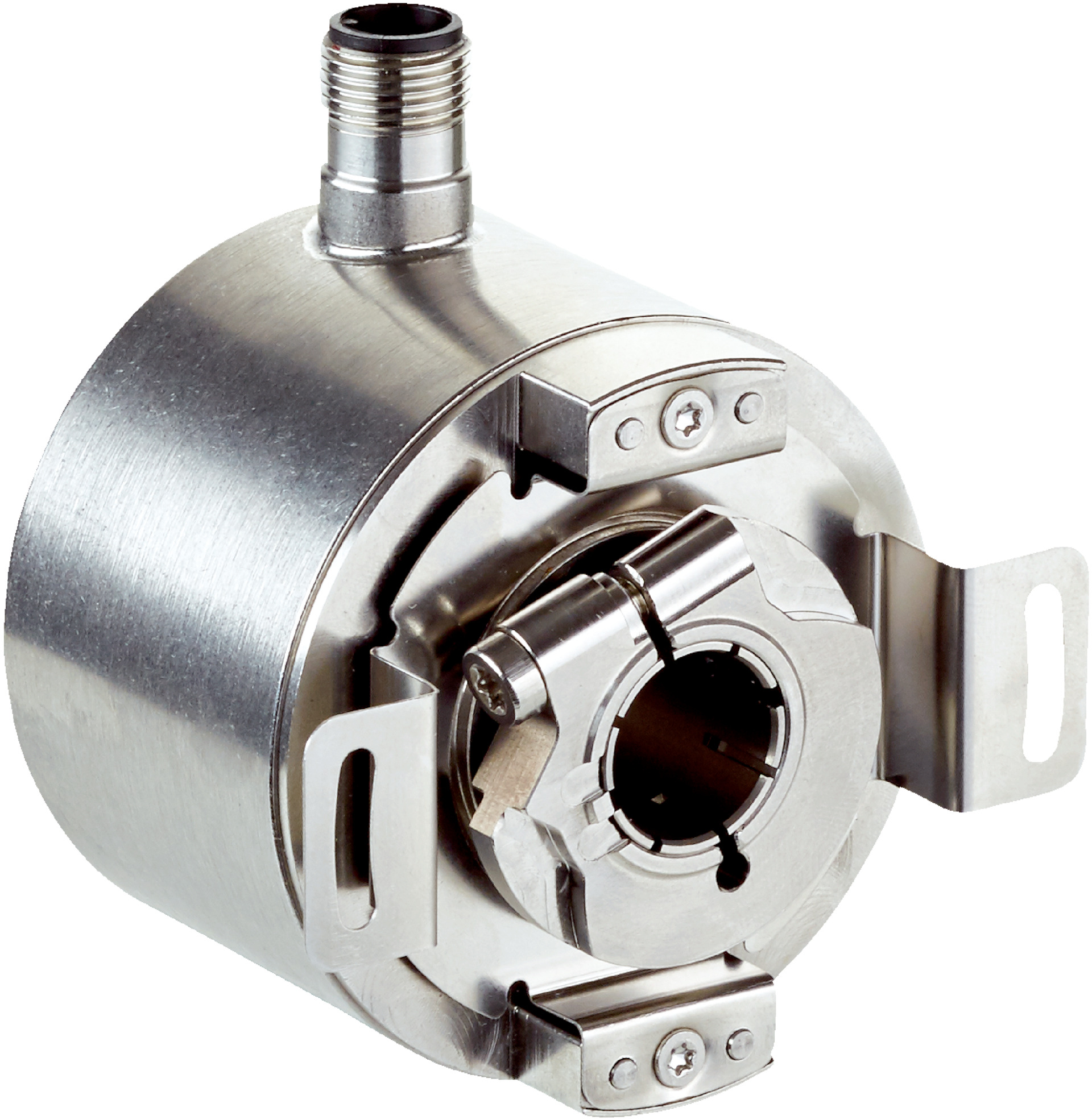

Absolute Encoder AFS60I-BCAC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Absolute Encoder AFS60I-BCAC262144 offers high precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel design and an IP67 rating, it ensures reliable performance in harsh environments. Fast initialization and position forming times enhance its suitability for safety-critical applications, providing exceptional durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60I-BCAC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1100094
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 3/8 inch diameter
- Operating speed: 6,000 min⁻¹
- Operating temperature: -40 °C to +100 °C
- Enclosure rating: IP67
- Weight: 0.5 kg
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with front clamp
- Communication via SSI interface with Gray code
- Fast initialization time of 50 ms and position forming time under 1 µs
- IP67 rated enclosure for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Operating temperature range from -40 °C to +100 °C
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position measurement
- Robotics and motion control systems
- Machine tool feedback and control
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
- Compliance with RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-BCAC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
