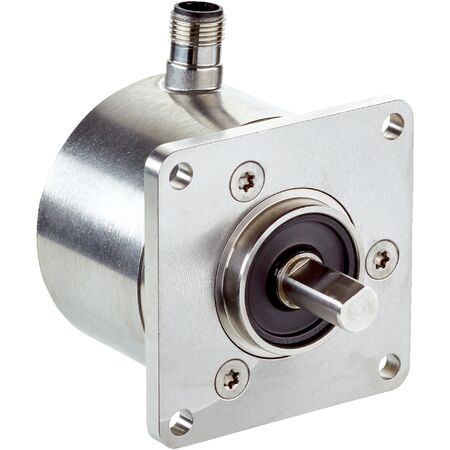

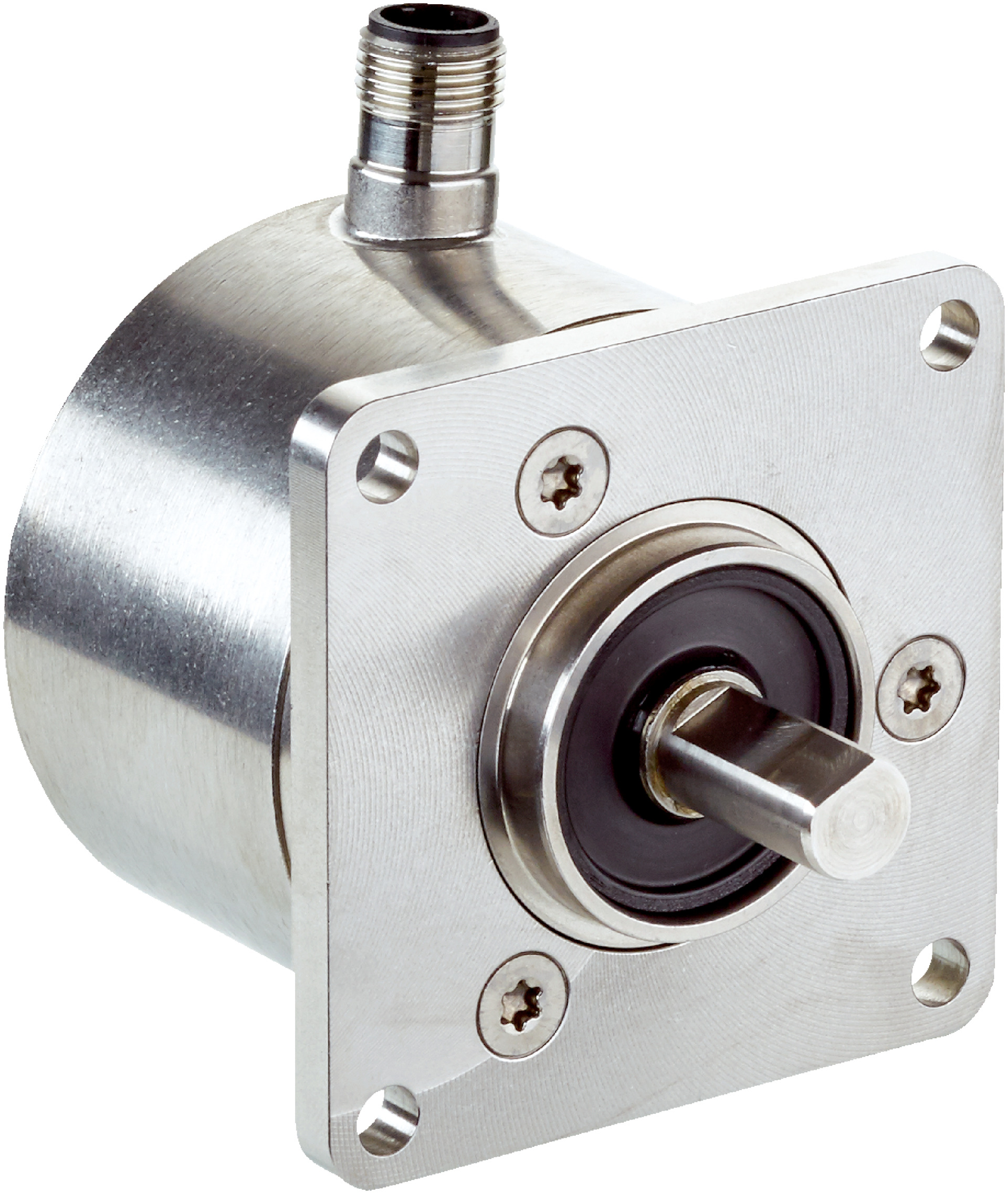

Absolute Encoder AFS60I-Q4PC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Absolute Encoder AFS60I-Q4PC262144 offers high precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel housing and an IP67 rating, it ensures reliable performance in harsh environments. Fast initialization and low power consumption enhance its efficiency, making it a perfect choice for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60I-Q4PC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1084005
Alternatively Known As: Rotary Absolute Encoder, SSI Absolute Encoder, High Resolution Encoder, Industrial Position Encoder
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limit: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Start up torque: 1 Ncm at 20 °C
- Operating torque: 0.5 Ncm at 20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with 10 mm diameter and flat for secure mounting
- Low power consumption ≤ 0.5 W without load
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection included
- IP67 rated enclosure for dust and water protection
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Operating temperature range from -40 °C to +100 °C
- Communication via SSI interface with Gray code output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60I-Q4PC262144 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
