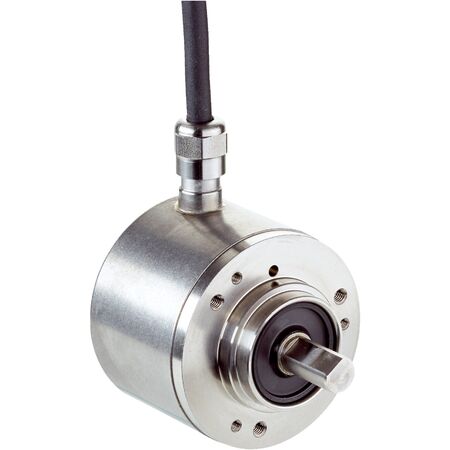

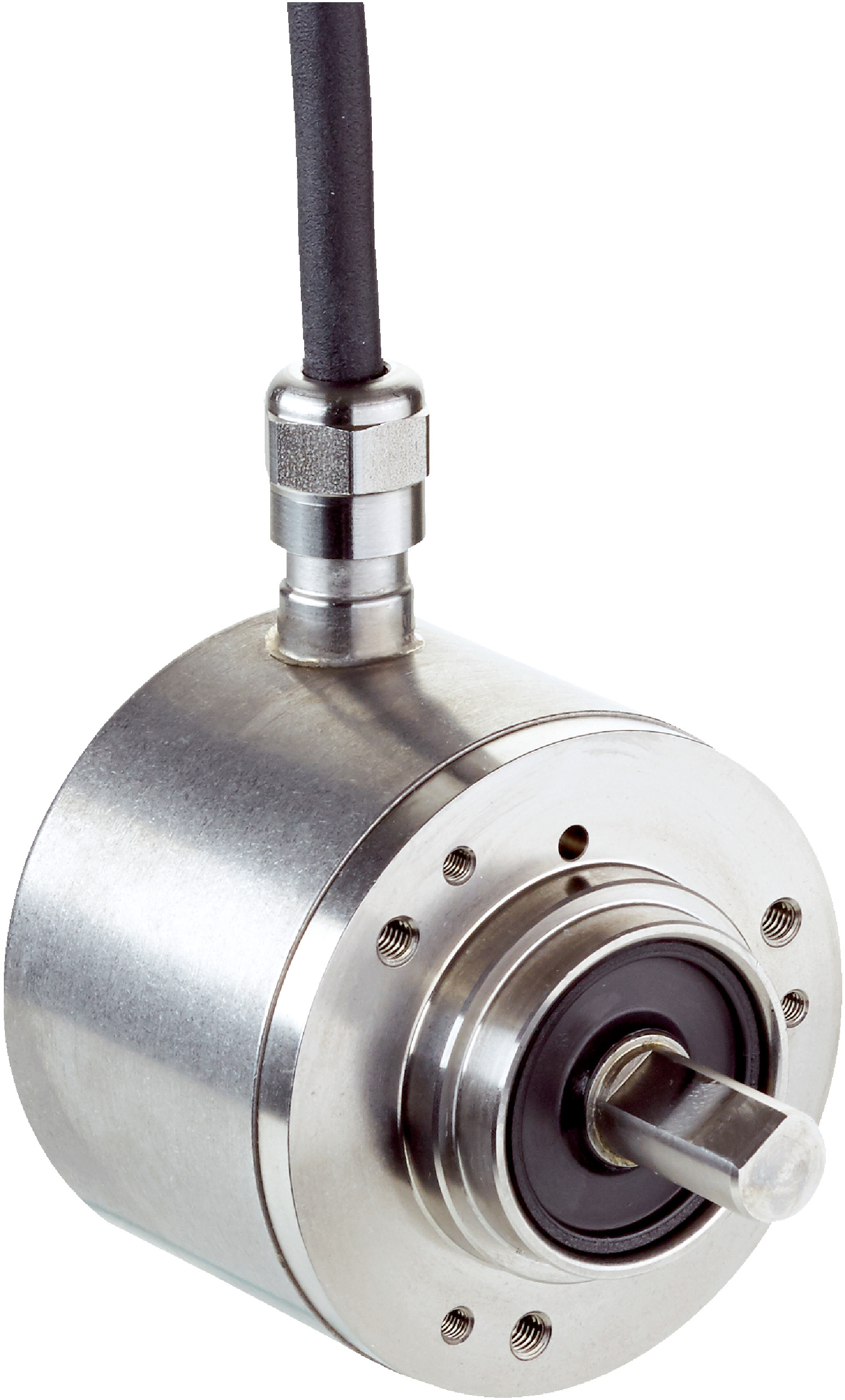

Absolute Encoder AFS60I-S4PM262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Absolute Encoder AFS60I-S4PM262144 offers high precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in harsh environments. Fast initialization and position forming times enhance its performance, making it a top choice for machine tool positioning and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AFS60I-S4PM262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1128765
Alternatively Known As: Rotary encoder, SSI absolute encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP67 (shaft side, housing side, cable connection)
- Operating temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with flat, 10 mm diameter and 19 mm length
- SSI communication interface with Gray code
- Fast initialization time of 50 ms and position forming time under 1 µs
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- High operating speed up to 9,000 min⁻¹
- IP67 rated enclosure for shaft side, housing side, and cable connection
- Wide operating temperature range from –40 °C to +100 °C
- High resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-S4PM262144 Absolute Encoder is available for immediate purchase, ideal for high precision industrial automation and safety applications.
