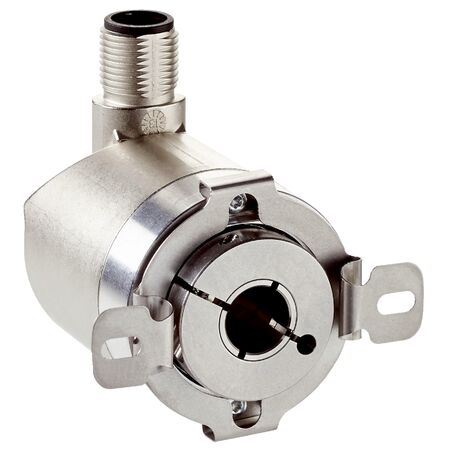

Absolute Encoder AHM36A-BKQC000A30 | 16,384 Steps/Rev | IO-Link V1.1 | IP66/IP67 Rated | by SICK
The Absolute Encoder AHM36A-BKQC000A30 offers high precision with 16,384 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. With an IO-Link V1.1 communication interface and robust IP66/IP67 rated enclosure, it ensures reliable performance in harsh environments. Designed for professionals, this encoder supports smart diagnostics and fast initialization, enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36A-BKQC000A30 | 16,384 Steps/Rev | IO-Link V1.1 | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1108587
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, SICK rotary encoder, industrial position sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Mechanical design: Blind hollow shaft, 1/4 inch diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP66 and IP67
- Operating temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Low start-up and operating torque (<1 Ncm)
- Wide operating temperature range from -40 °C to +85 °C
- Smart Sensor capabilities including enhanced sensing, diagnosis, and smart tasks
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Length measurement and trigger applications
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and robust design extend product life and reduce waste
- Supports predictive maintenance through smart diagnostics, minimizing downtime and resource use
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK AHM36A-BKQC000A30 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
