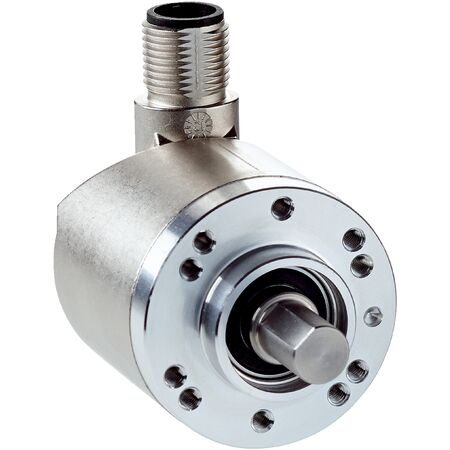

Absolute Encoder AHM36A-S3CC000S10 | 13 Bit x 12 Bit Resolution | IP66 & IP67 Rated | by SICK
The Absolute Encoder AHM36A-S3CC000S10 offers high precision with a resolution of 13 bit x 12 bit, making it ideal for industrial automation and robotics. With a robust mechanical design and IP66/IP67 enclosure rating, it ensures reliable performance in harsh environments. Perfect for applications requiring accurate position and speed measurement, this encoder supports CANopen communication for versatile integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36A-S3CC000S10 | 13 Bit x 12 Bit Resolution | IP66 & IP67 Rated | by SICK
Brand: SICK
SKU: 1134073
Alternatively Known As: Rotary Absolute Encoder, CANopen Encoder, High Resolution Position Encoder, Industrial Encoder
Technical Specifications
- Max resolution: 13 bit x 12 bit (8,192 x 4,096 steps)
- Number of revolutions: 4,096 (12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: CANopen with CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s (default 125 kbit/s)
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange, shaft diameter 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP66 and IP67
- Operating temperature range: -40 °C to +85 °C
- Connection type: Male connector, M12, 5-pin
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.12 kg
Key Features
- High resolution: 13 bit x 12 bit (8,192 x 4,096 steps)
- CANopen communication interface with multiple protocols supported
- Robust mechanical design with solid shaft and face mount flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
- Supports electronic cams with 2 channels and 8 cams each
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Process control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-S3CC000S10 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
