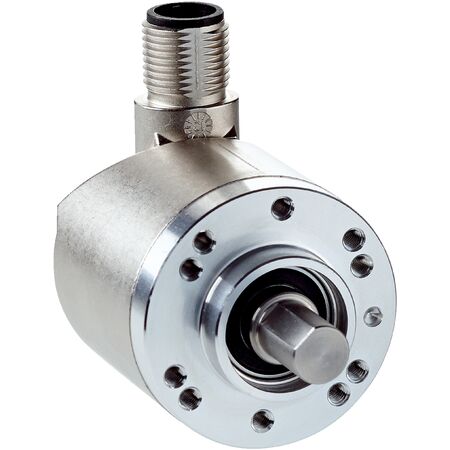

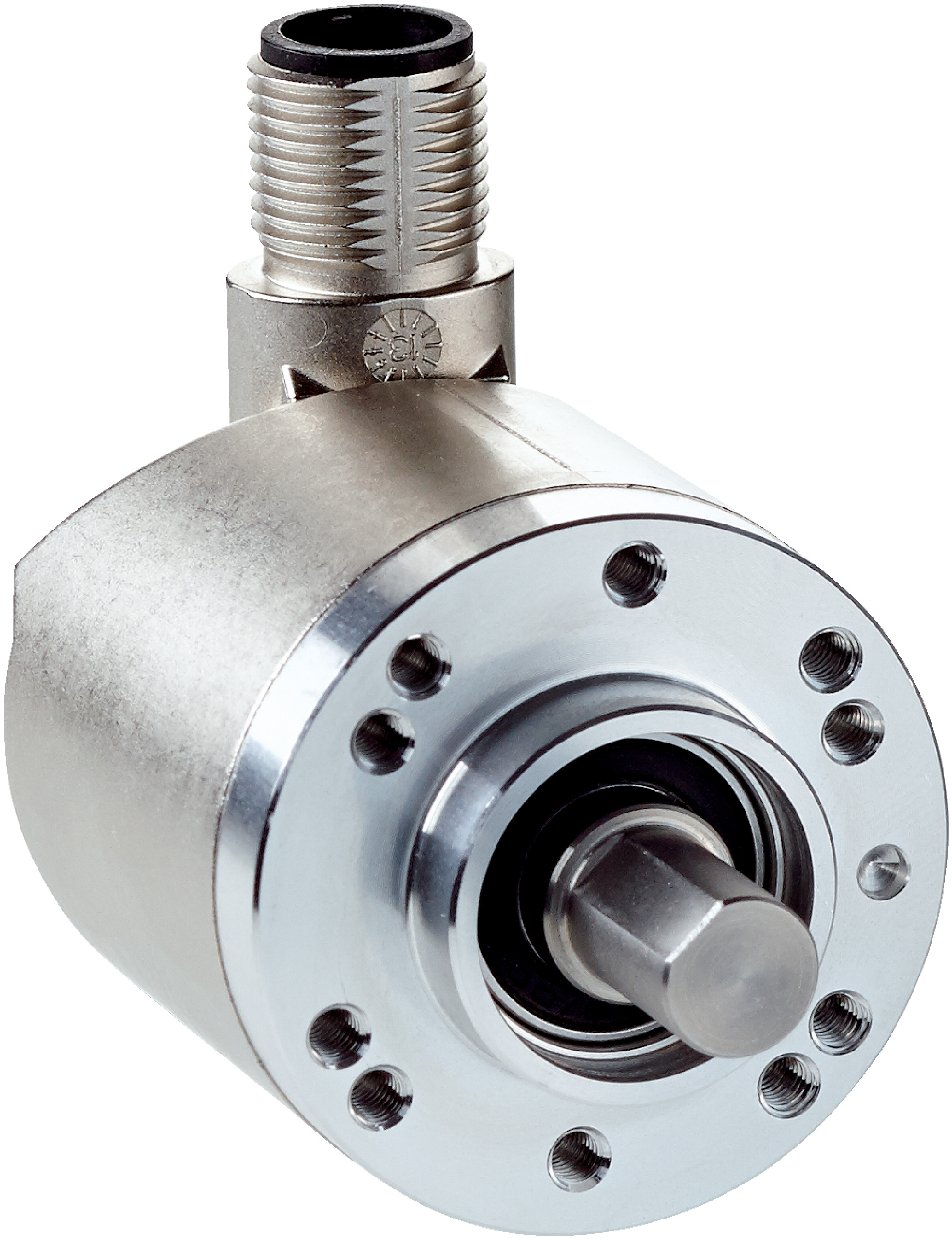

Absolute Encoder AHM36A-S4CC000S40 | 16,384 Steps/Rev | CANopen Interface | IP66/IP67 Rated | by SICK
The Absolute Encoder AHM36A-S4CC000S40 offers high precision with 16,384 steps per revolution and a robust CANopen communication interface. Designed for industrial automation, this encoder operates in extreme temperatures from -40°C to +85°C and features an IP66/IP67 rated enclosure, making it perfect for harsh environments. Ideal for robotics and machine tools, it ensures reliable position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36A-S4CC000S40 | 16,384 Steps/Rev | CANopen Interface | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1109329
Alternatively Known As: Rotary Absolute Encoder, CANopen Encoder, High Resolution Encoder, Industrial Position Sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile DS-406 V3.2 Class C2
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W without load
- Connection: Male M12, 5-pin universal connector
- Mechanical shaft diameter: 10 mm with flat
- Operating speed: up to 6,000 min⁻¹
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust mechanical design with solid shaft and face mount flange
- Wide operating temperature range from -40°C to +85°C
- IP66 and IP67 rated enclosure for harsh environments
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Long bearing lifetime and high resistance to shock and vibration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the CANopen interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36A-S4CC000S40 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
