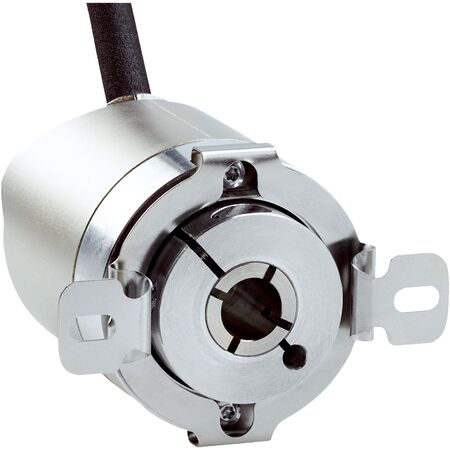

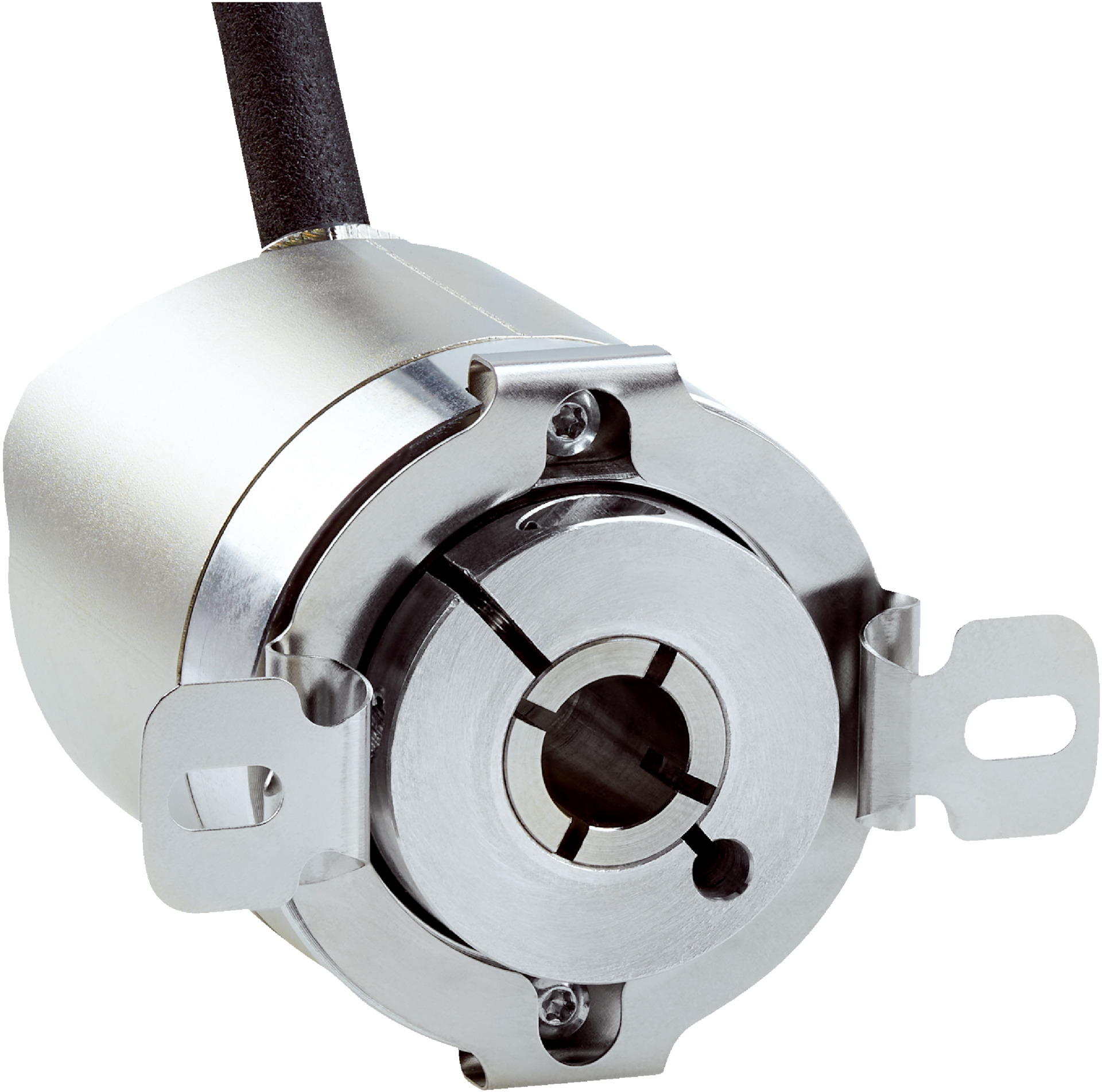

Absolute Encoder AHM36B-BBCK012x12 | 4096 Steps/Rev | CANopen Interface | IP65 Rated | by SICK
The Absolute Encoder AHM36B-BBCK012x12 offers high precision with 4,096 steps per revolution and a robust CANopen communication interface. Designed for industrial automation and robotics, it ensures reliable position and speed measurement, making it ideal for safety-critical applications. With an IP65 rating and low power consumption, this encoder is built to withstand harsh environments while delivering exceptional performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36B-BBCK012x12 | 4096 Steps/Rev | CANopen Interface | IP65 Rated | by SICK
Brand: SICK
SKU: 1076697
Alternatively Known As: Rotary Absolute Encoder, CANopen Encoder, High Resolution Encoder, Blind Hollow Shaft Encoder
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit), 4,096 revolutions (12 bit)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: CANopen CiA DS-301 V4.02, DSP-305 LSS
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 5-wire cable, 1.5 m length
- Mechanical design: Blind hollow shaft, 8 mm diameter shaft
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP65 (IEC 60529)
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- CANopen communication interface supporting CiA DS-301 V4.02 and DSP-305 LSS
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 6,000 min⁻¹ and long bearing lifetime
- Safety-related parameter MTTFD of 270 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36B-BBCK012x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
