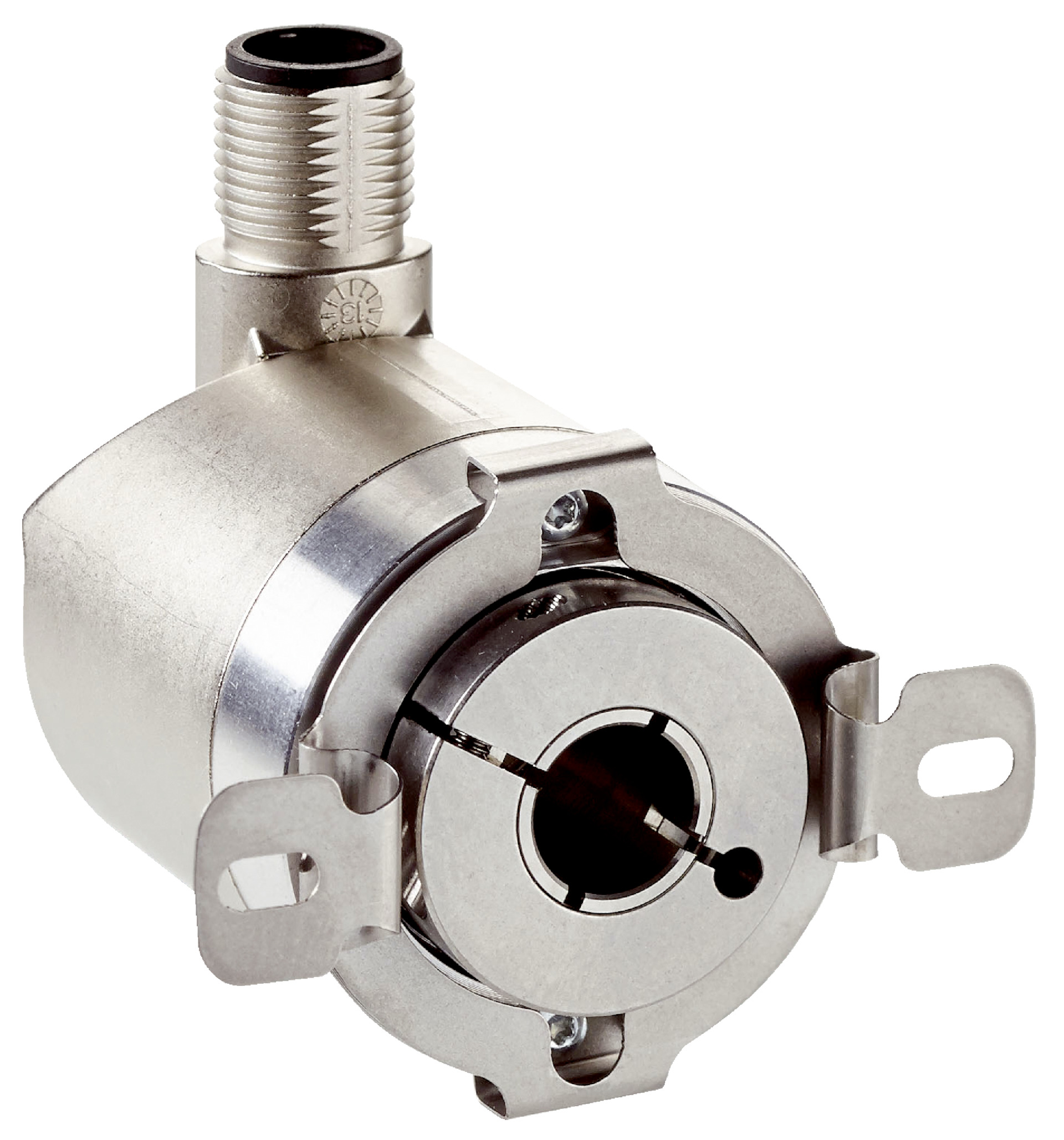

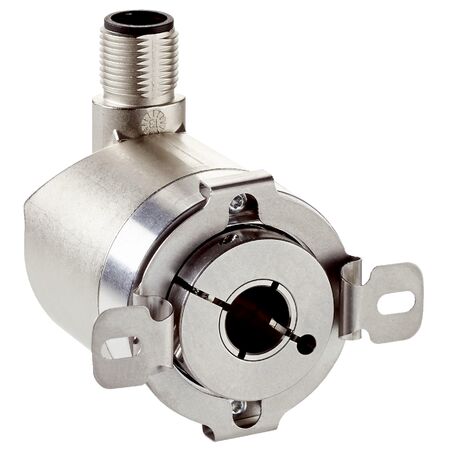

Absolute Encoder AHM36B-BCQC012x12 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
The Absolute Encoder AHM36B-BCQC012x12 offers high precision with 4,096 steps per revolution and IO-Link V1.1 communication, making it ideal for industrial automation and robotics. Built for reliability, it features a robust blind hollow shaft design and an IP65 rated enclosure, ensuring durability in harsh environments. Perfect for applications requiring precise position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36B-BCQC012x12 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
Brand: SICK
SKU: 1092006
Alternatively Known As: Absolute rotary encoder, IO-Link encoder, SICK rotary position sensor, blind hollow shaft encoder
Technical Specifications
- Max resolution: 4,096 steps per revolution (12 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Mechanical design: Blind hollow shaft, 3/8 inch diameter
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating torque: < 0.5 Ncm at 20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature: -20 °C to +70 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- High reliability with MTTFD of 240 years according to EN ISO 13849-1
- Operating temperature range from -20 °C to +70 °C
- Resistance to shocks (100 g, 6 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback systems
- Process control and monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36B-BCQC012x12 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
