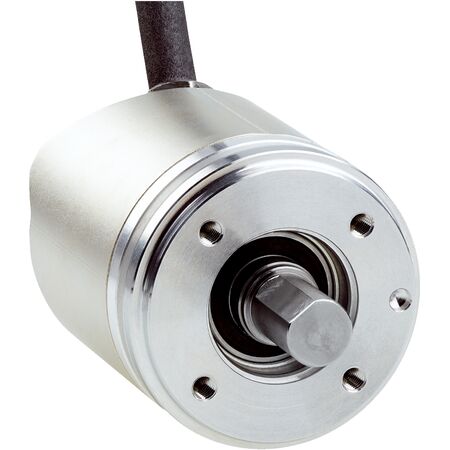

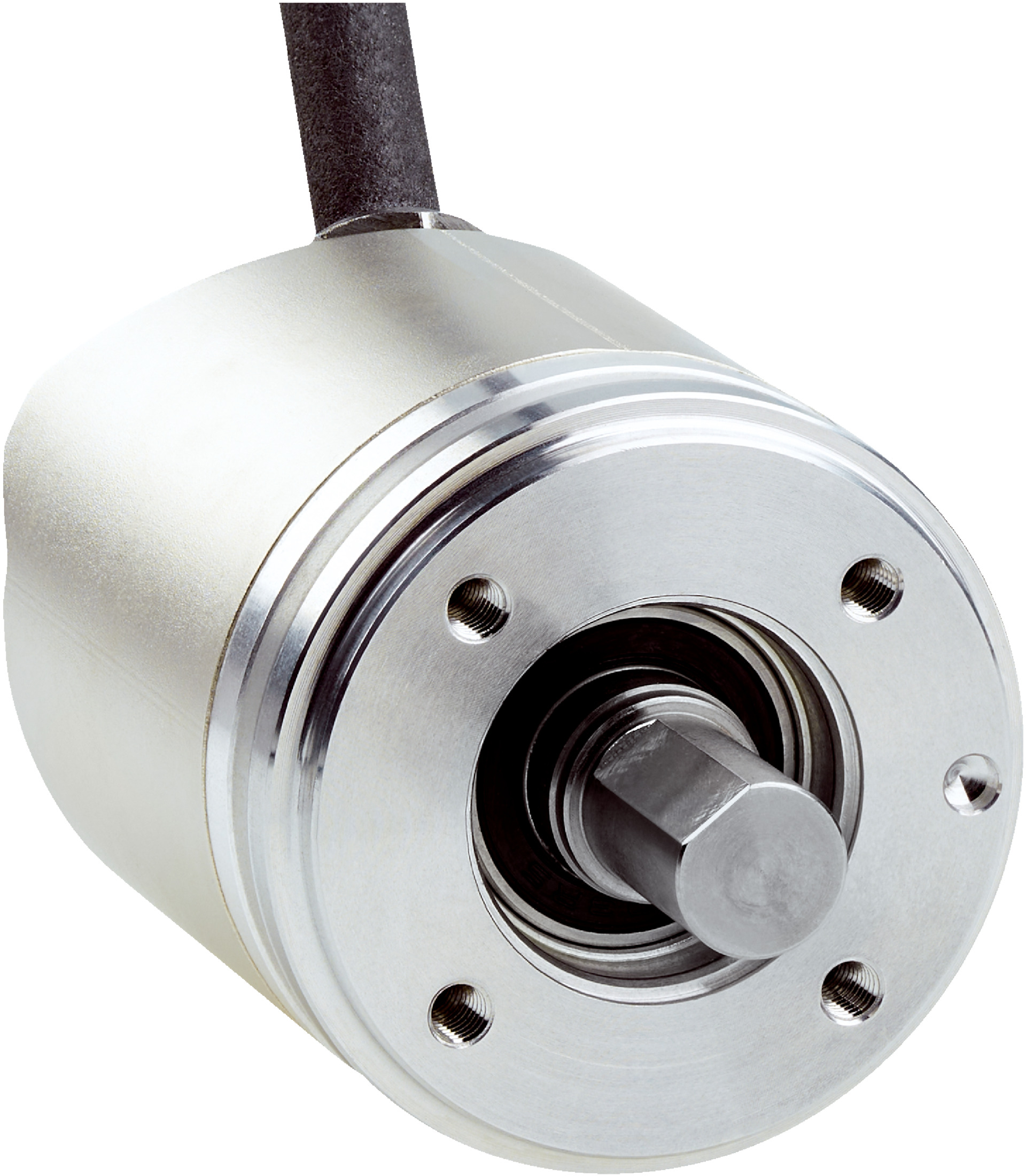

Absolute Encoder AHM36B-S1AL012x12 | 4096 Steps/Rev | IP65 Rated | by SICK
The Absolute Encoder AHM36B-S1AL012x12 offers high precision with 4096 steps per revolution and a robust IP65 rated enclosure, making it ideal for industrial automation and robotics. Designed for reliable position feedback, it features a solid shaft with servo flange and low power consumption, ensuring durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36B-S1AL012x12 | 4096 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1096879
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, SICK encoder
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 4,096 steps per revolution (12 bit) and 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: < 0.5 Ncm at +20 °C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: –20 °C to +70 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 12 bit x 12 bit (4,096 x 4,096) steps per revolution and revolutions
- Solid shaft with servo flange and stainless steel shaft with flat
- Robust housing with zinc material and aluminum flange
- IP65 rated enclosure for dust and water protection
- Low power consumption ≤ 1.5 W
- Reverse polarity protection
- Fast initialization time of 100 ms and position forming time of 125 µs
- Communication via SSI interface with adjustable code sequence
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Wide operating temperature range from –20 °C to +70 °C
- Resistance to shocks (100 g, 6 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in machinery
- Safety-related applications requiring reliable position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36B-S1AL012x12 absolute encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related position feedback applications.
