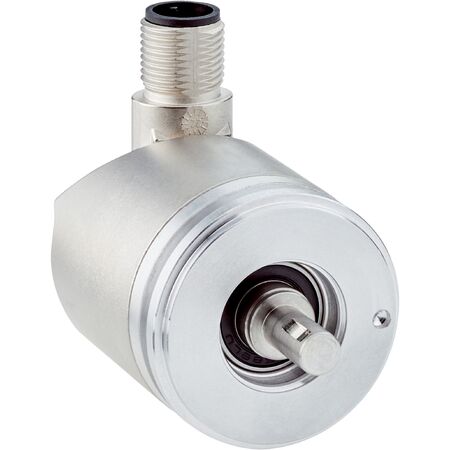

Absolute Encoder AHM36B-SDQC012x12 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
The Absolute Encoder AHM36B-SDQC012x12 offers high precision with 4,096 steps per revolution and a fast IO-Link V1.1 communication interface. Designed for industrial automation, this encoder ensures reliable position and speed measurement, making it ideal for robotics, servo motor feedback systems, and process control applications. With an IP65 rating, it withstands dust and water, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36B-SDQC012x12 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
Brand: SICK
SKU: 1092035
Alternatively Known As: Rotary encoder, Absolute rotary encoder, IO-Link encoder, Position sensor, SICK encoder AHM36B
Technical Specifications
- Max resolution: 4,096 steps per revolution x 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection type: Male connector, M12, 4-pin
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 12 mm
- Materials: Stainless steel shaft, Aluminum flange, Zinc housing
- Start up and operating torque: < 0.5 Ncm at 20 °C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 240 years according to EN ISO 13849-1
- Wide operating temperature range from -20 °C to +70 °C
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36B-SDQC012x12 absolute encoder is available for immediate purchase. Ideal for industrial automation and precise motion control applications.
