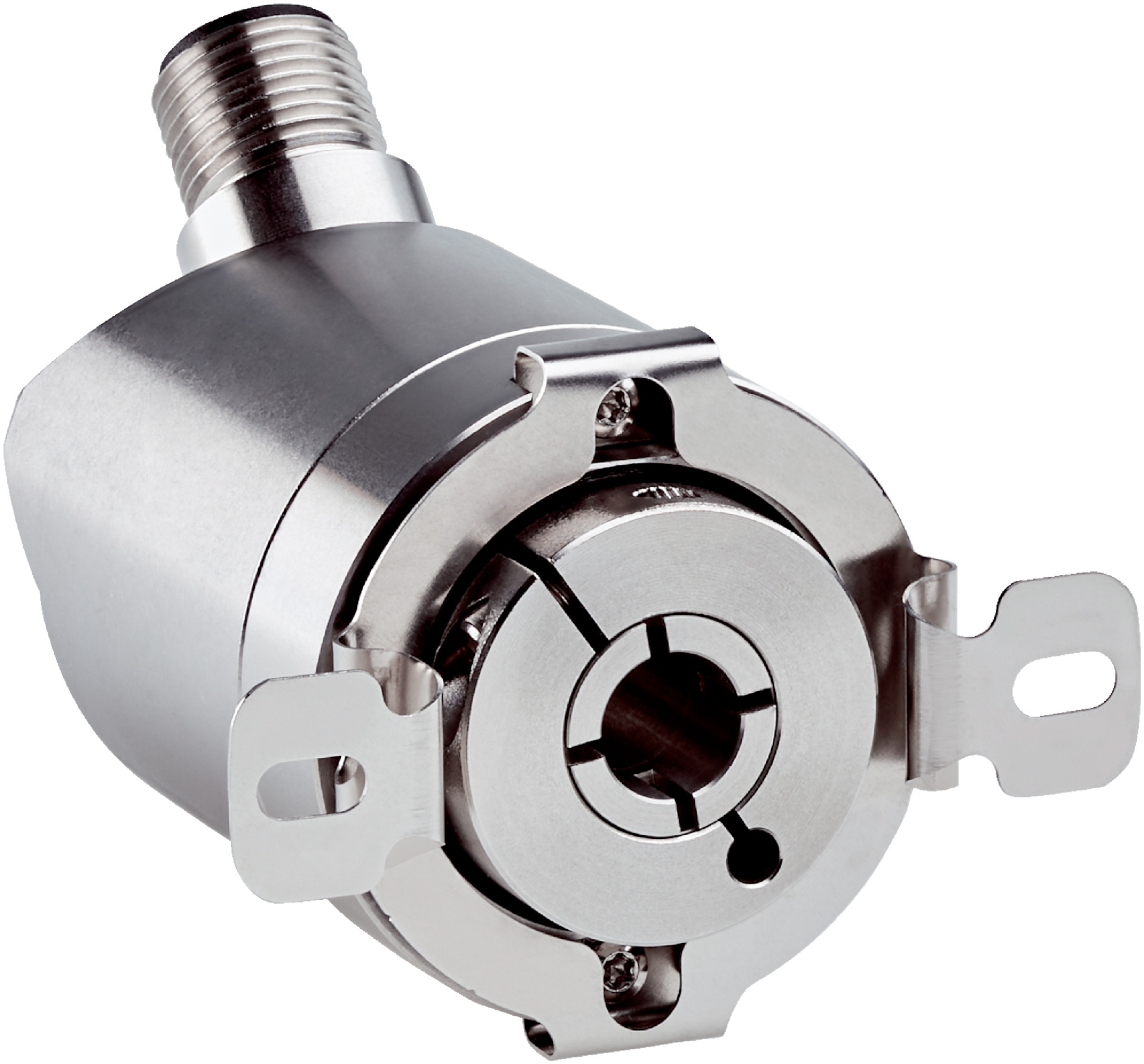

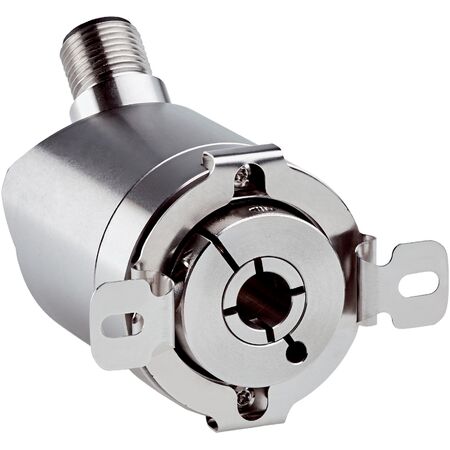

Absolute Encoder AHM36I-BACC014x12 | 16384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-BACC014x12 absolute encoder delivers exceptional precision with a resolution of 16,384 steps per revolution and a robust design for industrial automation. Ideal for applications requiring high reliability and accuracy, it features a CANopen communication interface and operates in extreme temperatures from -40°C to +85°C. With an IP67 and IP69K rating, this encoder is built to withstand harsh environments, making it perfect for robotics and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BACC014x12 | 16384 Steps/Rev | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1099315
Alternatively Known As: Rotary encoder, Absolute rotary encoder, CANopen encoder, Industrial position sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limit: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection: Male M12 5-pin connector
- Shaft diameter: 6 mm, stainless steel 1.4305
- Operating speed: up to 6,000 min⁻¹
- Operating temperature range: -40°C to +85°C
- Enclosure rating: IP67 and IP69K
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Blind hollow shaft design with front clamp shaft characteristics
- Long bearing lifetime of 2.0 x 10^9 revolutions
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the CANopen interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Machine tools and manufacturing equipment
- Safety-related applications in automated systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in industrial systems
- High resistance to environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK AHM36I-BACC014x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision and reliability.
