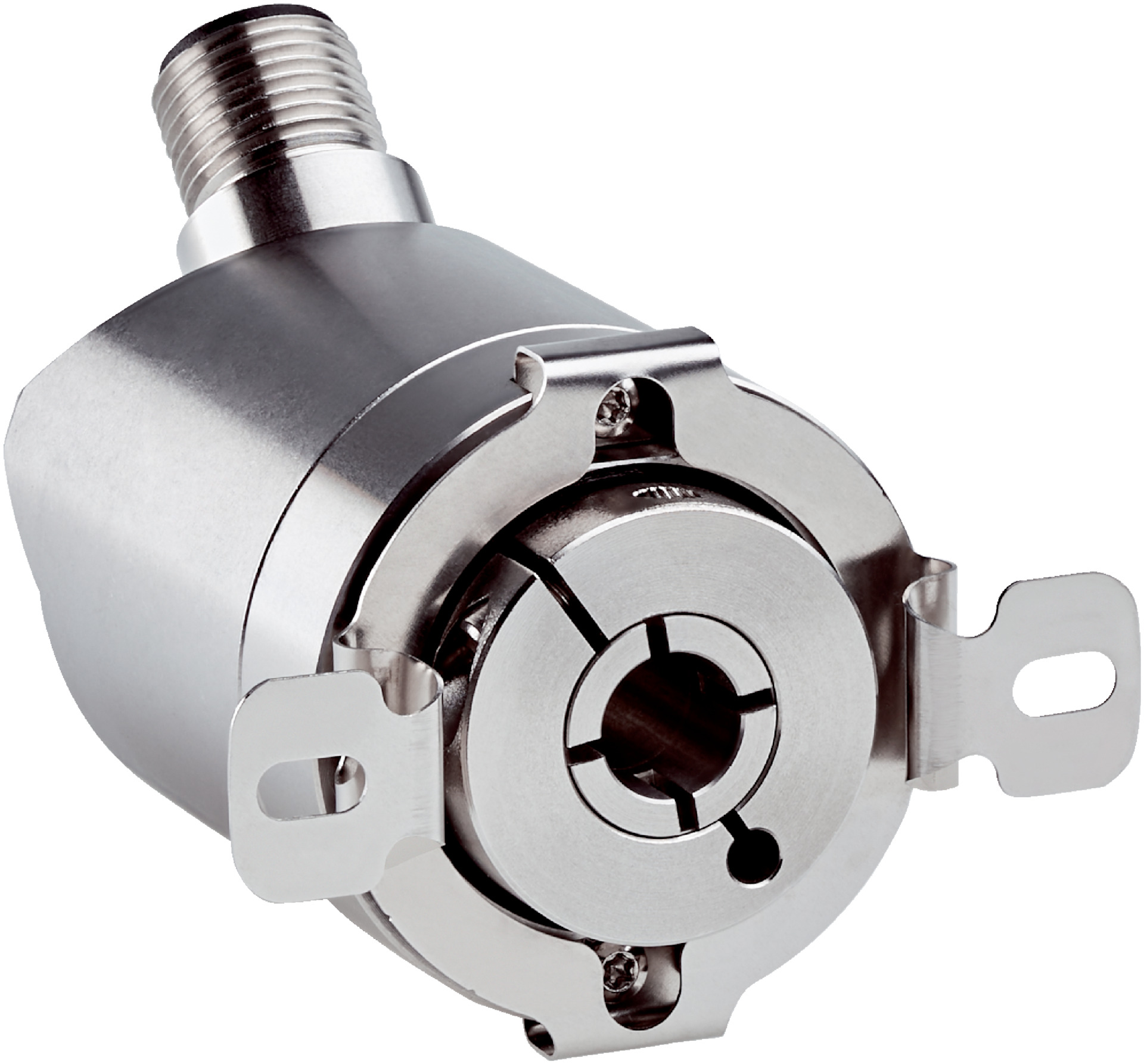

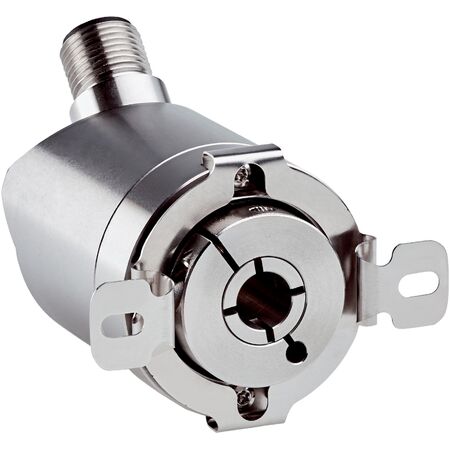

Absolute Encoder AHM36I-BAPC014x12 | 16384 Steps/Rev | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BAPC014x12 offers high precision with a maximum resolution of 16,384 steps per revolution, making it ideal for industrial automation and robotics. With an IP67 and IP69K rated enclosure, it withstands harsh environments while providing reliable position feedback. Designed for professionals, this encoder ensures optimal performance in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BAPC014x12 | 16384 Steps/Rev | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1099355
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Industrial position sensor
Technical Specifications
- Max resolution: 16,384 steps per revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: SSI with 2 MHz clock frequency
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W without load
- Mechanical design: Blind hollow shaft, 6 mm shaft diameter
- Operating speed: up to 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Connection type: Male M12, 8-pin connector
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft materials
- Blind hollow shaft mechanical design with front clamp
- IP67 and IP69K rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +100 °C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Fast initialization time of 100 ms and position forming time of 125 µs
- Communication via SSI interface with configurable code type (Gray, binary)
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular position feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption minimizes energy usage in industrial systems
- High reliability reduces need for frequent replacements and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AHM36I-BAPC014x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
