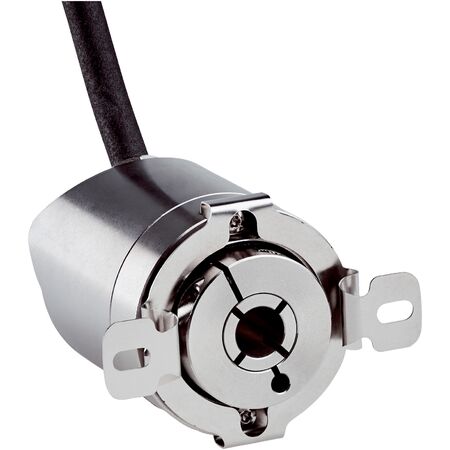

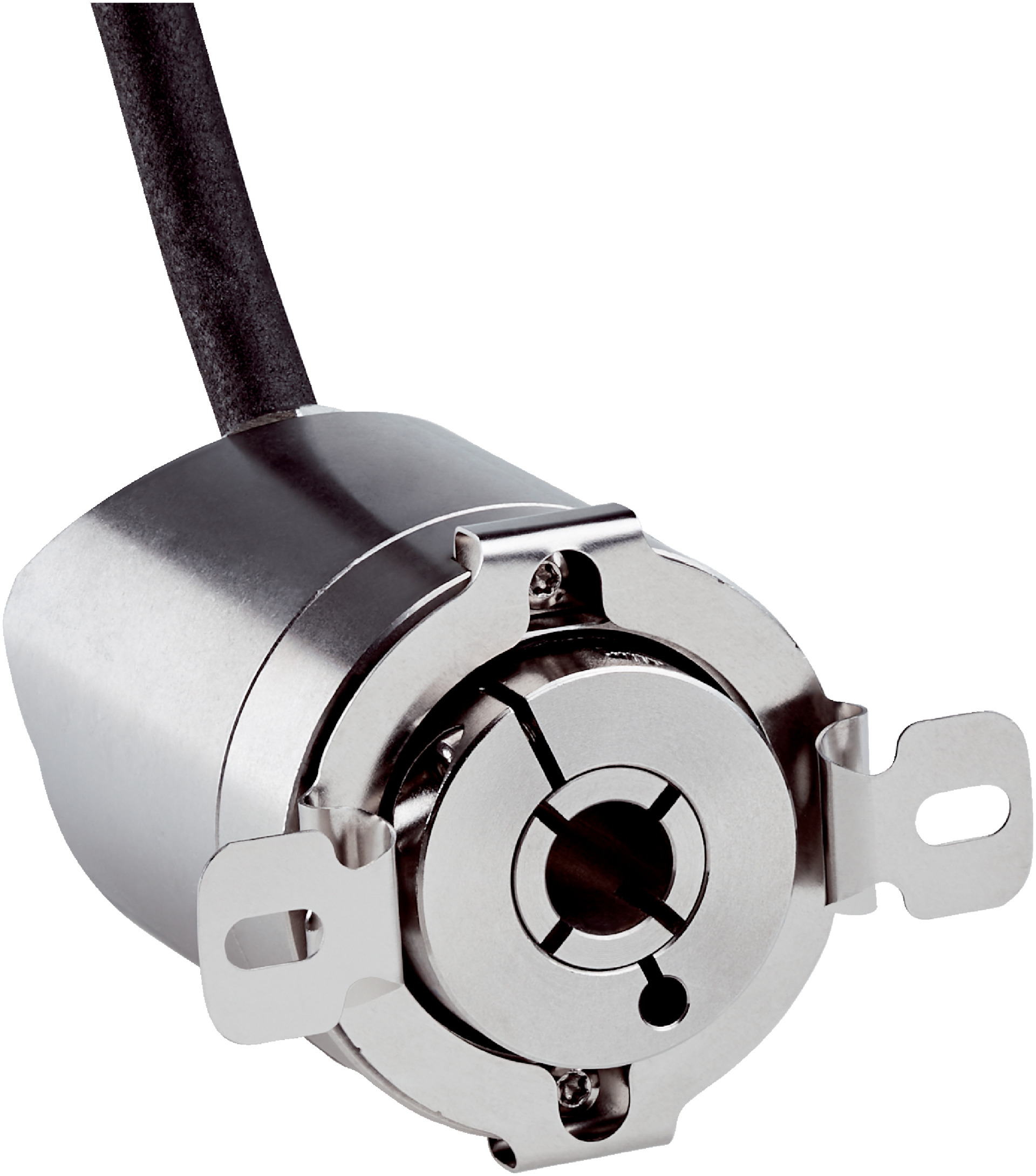

Absolute Encoder AHM36I-BBAL010x12 | 1,024 Steps/Rev | IP67 & IP69K Rated | by SICK
The Absolute Encoder AHM36I-BBAL010x12 offers high precision with 1,024 steps per revolution and a robust stainless steel design, making it ideal for industrial automation and robotics. With an IP67 and IP69K rating, it withstands harsh environments while providing reliable position feedback. Perfect for machine tools and conveyor systems, this encoder ensures accurate motion control and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Encoder AHM36I-BBAL010x12 | 1,024 Steps/Rev | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1099374
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, blind hollow shaft encoder, industrial position encoder
Technical Specifications
- Resolution: 1,024 steps per revolution (10 bit), 4,096 revolutions (12 bit)
- Max resolution: 10 bit x 12 bit (1,024 x 4,096)
- Error limit: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W
- Shaft diameter: 8 mm
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 and IP69K
- Mechanical design: Blind hollow shaft with front clamp
- Material: Stainless steel 1.4305 for shaft, flange, housing, and stator coupling
- Cable: 8-wire, 3 m PUR cable
- Start up torque: 1 Ncm at +20°C
- Operating torque: < 1 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial and axial
- Permissible dynamic movement: ±0.1 mm radial and axial
- Moment of inertia of rotor: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 1,024 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- Blind hollow shaft design with front clamp
- SSI communication interface with Gray code output
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40°C to +100°C
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- High mechanical reliability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast initialization time of 100 ms and position forming time of 125 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high-resolution feedback
- Conveyor systems and material handling
- Safety-related applications in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption minimizes energy usage
- High reliability reduces electronic waste through extended service life
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK AHM36I-BBAL010x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
